Commercial Frozen meat slicer GQ520

  • Capcity: 3000(kg/hour)
  • Power: 11(kw)
  • Voltage: 220v/380v
  • Ports: main ports of China
  • Size: 650*520*190(mm)
  • Payment: T/T,Western Union L/C,

Send an E-mail to us!

(※ Click this button to inquiry)

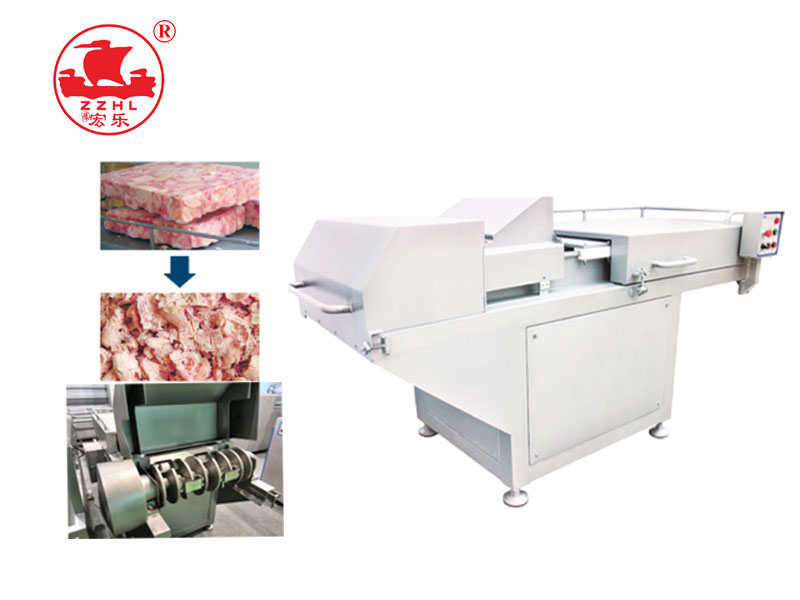

  • Frozen Meat Slicing Machine

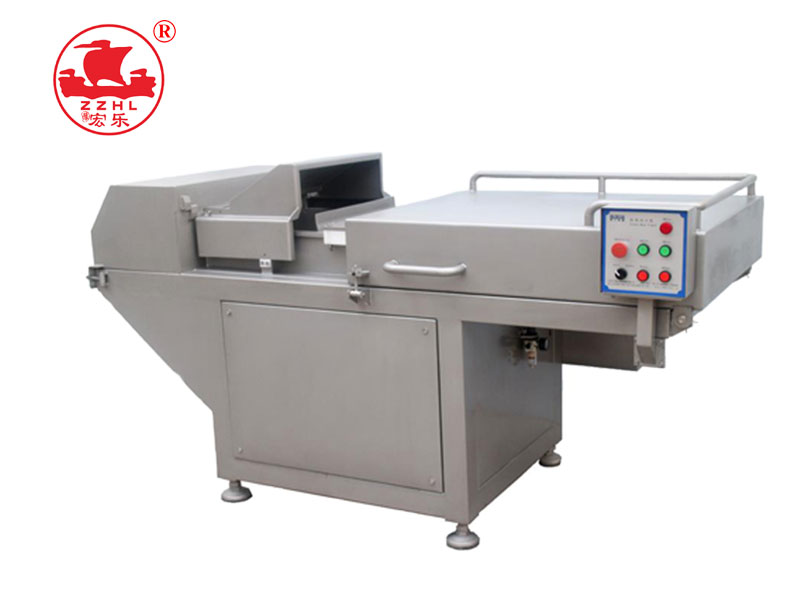

  • The side of the machine
  • The side of the frozen slicing machine
  • details of commercial-meat-slicer
■ Application and Features

Introduction of commercial frozen meat slicer GQ520

the Frozen meat slicer is capable of directly slicing a frozen bulk,in which means save the time required for the process of unfreezing and slow down temperature rising of raw meat during processing so as to save refrigeration cost,ideal equipment for meat  processing.

Application of Commercial Frozen meat slicer GQ520

the commercial meat slicer is widely used for frozen meat handling in meat products processing plants, leisure food plants, Chinese restaurants and western restaurants, etc.

Features of commercial frozen meat slicer GQ520

The size of sliced meat is adjustable and the meat may directly go to next process.
this type of frozen meat slicer has automatic feeding system shall effectively reduce work intensity of workers.
The commericial automatic protection function ensures operational safety.
Its cutting blade,made of good quality alloy steel,is keen and durable,and two edged blade may be alternatively used,which shall lower expensive for maintenance of equipment.
The whole body of  frozen meat slicer is made of stainless steel;with beautify outline,reasonable structure,and stable performance.

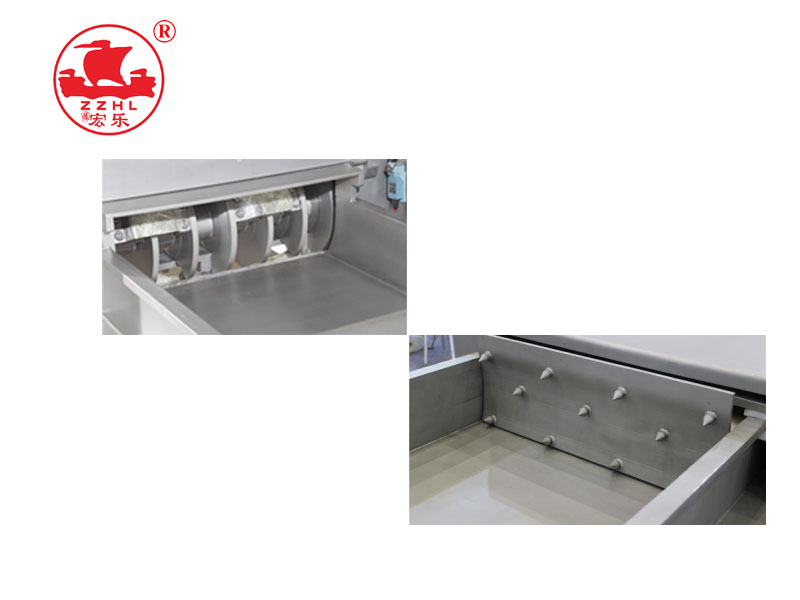

insider of the frozen meat slicer

■ Specifications

Technical parameter of commercial frozen meat slicer GQ520

Model GQ-520 DQ-520
Capacity(kg/h) 3000 2000
Power(kw) 11 7.5
Speed(r/min) 330 60
Channel size(mm) 650×520×190 650×520×190
Meat temperature(℃) -5~-18 -5~-18
