Nuts Processing Machine

You are here: Home > Products  > Nuts Processing Machine

500kg hour Cashew nut processing line

  • Capcity: 500kg/hour
  • Power:
  • Voltage:
  • Ports: Qing Dao,Ning Bo
  • Size:
  • Payment: T/T,Western Union L/C

Send an E-mail to us!

(※ Click this button to inquiry)

  • 500kg hour Cashew nut processing line
■ Application and Features

Automatic Cashew Nut Shelling Processing Line

Cashew nut processing plant is a whole line for shelling cashew nuts and roasting cashew kernels. Fully-automatic cashew nut shelling and cashew kernel peeling machines save lots labors.

Advantage of 500kg hour Cashew nut processing line

1. Latest automatic cashew nut shelling line can finish all cashew nut processing steps from nut shelling, separating, peeling to roasting at one time.
2. All parts in Automatic cashew nut shelling line are controlled by PLC. Fully automatic design can save more and more working time and workforce when compared with manual cashew nut process.
3. The automatic cashew nut shelling line are made from carbon steel and stainless steel. It can have a long service life.
4. Adjustable distance between rollers can press cashew nuts in all size.
5. High efficiency in shelling and separating machine. The final perfect cashew kernels can reach 98%.
6. Advanced design ensures a low broken rate and low energy consumption.



■ Specifications

Specifications of 500kg hour Cashew nut processing line



Name

Photos

Parameter

Quantity

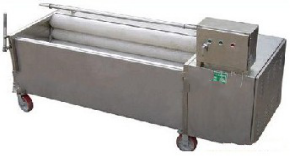

Cashew

nut

washing

machine

Size ：3*1*1.6 m

power：1.1kw

Voltage:380v  50hz

Capacity:500kg

Weight:400kg

1

Steam

cooker



Size ：2*1.5*2.5 m

power：1.1kw  380v  50hz  capacity:500kg

Weight: 900kg

1





Include the elevator

size：1*0.8*3.5m

power：0.75kw 380v  50hz

Weight:150kg



Include the steam generator

size：0.8*0.8*2.5m

 Weight: 200kg



Elevator



size：3.5*0.7*2.5 m

Power ：0.75kw  380v  50hz

Weight:150kg



According the customer request

Cashew dryers



Size ：6*1.2*1.6 m

Adjustable motor power：1.1kw

Heating power:22kw  380v   50hz

Capacity:300kg

Weight: 300kg



1

Elevator



size：3.5*0.7*3 m

Power ：0.75kw  380v  50hz

Weight:150kg



Grading machine





Size:3.5*2*2.5m

power：3kw  380v  50hz

Capacity:1000kg

Weight:1000kg

Material: carbon steel

1

Grading elevator( three grade)







 Size ：3.5*0.7*3 m

 Power ：0.75kw  380v  50hz

Weight:150kg

3

The  distribution belts



Size ：4*0.7*3 m

Power ：0.75kw  380v  50hz     ，weight:70kg/m），

18

 Sheller





Capacity:45--50kg/h

Size:1.3*0.8*1.4

Weight:  120kg

12sets

pneumatic：air presser 3kg

（reference：matched-air presser   8kg    7.5kw   380v   50hz  size:1.5*0.56*1m

 Steam manifold capacity :1cube





conveyor



 size：4*0.7*0.8 m

power：0.75kw  380v  50hz

Weight: 60kg/m

1

The gather conveyor



size：8*0.7*0.8m  power：0.75kw  380v  50hz

Weight:

60kg/m

1

Elevator





size：3.5*0.7*3 m

power：0.75kw  380v  50hz weight:150kg

1

Shell and kernel separator





size：2.5*0.8*1.4 m

power：1.1kw  380v  50hz  capacity: 500kg

Weight: 260kg

Material:carbon steel







1

Selected belt

 （it equiped according the customer request)





size：6*0.7*0.8 m

power：0.75kw  380v  50hz

1

Elevator





size：3.5*0.7*3 m

Power：0.75kw  380v  50hz weight150kg

1

Nut drying machine





The automatic setting

size：7*1.6*2.8m

Material: stainless steel and carbon steel
adjustable motor power：1.1KW

Electric heating power：80KW or gas heating

16kg/h
capacity：600kg



1

Nuts elevator



size：3.5*0.7*3 m

power：0.75kw  380v  50hz

Weight:150kg

1

 Nuts peeling machine





Capacity: 300kg/h

Air flow rate: 3m³/min  motor power:0.2KW/220V/HZ

Peeling rate: 95%

Size:1000*700*1600     material: stainless steel(inter)  carbon black(outer)



1

Matched-air pressor



size：1.6*0.7*1.3 m

power： 22kw   380v  50hz

Presser: 8mpa  1.5cube

Weight:500kg

1

Selected belts



(according the sheller)





size：6*0.7*0.8 m

Power：0.75kw  380v  50hz

Weight:,60kg

1

Roaster



Automatic setting

size：3.5*3*1.6m

Material:stainless steel(inter)   carbon steel(outer)
motor power：3.3KW

Electric heating power：65KW or gas heating power:16kg/h
capacity：300--400kg



1

 Nuts grading machine





Size ：3*0.9*1.3m  power：0.75kw  380v   50hz

Weight:300kg

Capacity:150kg/h

1

Packing machine



vacuum chamber size：700*610*160mm                     seal size： 600×8 mm
voltage ： 380v 50Hz 2.5KW                     packing capacity：2-4 bags/min

Weight:500kg             EXT.DIM.： 1400×750×1030mm

Sunken size：30-260mm( can be ordered according to the customers demands)



1
