Nuts Processing Machine

You are here: Home > Products  > Nuts Processing Machine

Peanut Shelling Machine

  • Capcity: 500-700kg/hour
  • Power: 2.2-3kw
  • Voltage: 380v
  • Ports: Qing Dao,Ning Bo
  • Size: 1260*860*1660mm
  • Payment: T/T,Western Union L/C

Send an E-mail to us!

(※ Click this button to inquiry)

  • automatic groundnut sheller
  • peanut shell removing machine
■ Application and Features

Introduction of Peanut Shelling Machine
Peanut Shelling Machine is produced according to the national standards strictly.  consists of rasp bar, stake, intaglio, fan, gravity separator and second bucket, etc. The whole peanutseed sheller frame is made of high-quality steel and the shelling chamber is made of stainless steel. This peanut shell removing machine has compact structure, easy operation and reliable performance. It is used to shell peanut; can separate shells and kernels with high-efficiency and almost without damage to the kernel; and the shelling rate can be ≥98%, the breaking rate is≤2%. While peanut kernels are used for food or the raw material for the oil mill, the shell could be used to make wood pellets or charcoal briquettes for fuel.

Working Principle of Peanut Shelling Machine

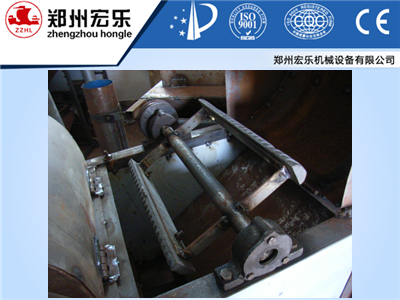

First, the shells of peanuts are shelled by the rolling force between the rotating rasp bar and the fixed intaglio, and then the shells and kernels fall through the grid mesh down to the air duct, and the fan blows shells out. The kernels and the unshelled small peanuts fall into the gravity separator. The separated kernels are sent upward to the outlet and the separated unshelled small peanuts are sent downwards to the elevator, and the elevator sends the unshelled peanut to the fine grid mesh to be shelled again until the whole batch of peanuts are all shelled.

Advantages of Peanut Shelling Machine
1. Cheap price, high efficiency and low energy consumption
2.The
automatic groundnut sheller can shell peanut completely; separate shells and kernels purely and almost without damage to the kernel; and the shelling rate can be ≥95%, the breaking rate is≤2%.

3. Peanut shell removing machine has compact structure, easy operation, reliable performance and easy maintenance.

4. Small occupation space.
5. The shelled kernels meet the hygiene standards.

Peanut Shelling Machine video: youtu.be/y-OFgWIkKJU











■ Specifications

Technical Parameter of Peanut Shelling Machine

Model

HSB-70

HSB-150

Capacity (kg/h)

500-700

1000-1200

Shelling Ratio

98%

98%

Crushing Ratio

5%

5%

Loss Ratio

0.5%

0.5%

Clean Ratio

98%

98%

voltage

380v

380v

frequency

50hz

50hz

Power (kw)

2.2-3

3-4

Operators

1-2

1-2

Total Weight (kg)

210

300

Dimensions (mm)

1260*860*1660

1600x1050x1850
