Introduction of Belt type drying machine

Belt type drying machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The air belowing drying machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The snack dryer owns the advantages, of fast drying speed, high evaporation capacity and good product quality.The dewatered & filtered cake state paste material should be made into particles or strips before drying process.

With electricity (microwave) heating (coal, gas, oil) as a heat source, using the principle of thermal radiation drying (baking) material, by circulating hot air and hot air blower to achieve material is heated evenly, effectively guarantee drying (baking) materials the quality, color and taste.

Advantages of Belt type drying machine

1 Amount of air, heating temperature, time of material sticking on the belt and velocity of feeding material can be adjusted in order to obtain the best drying effect.

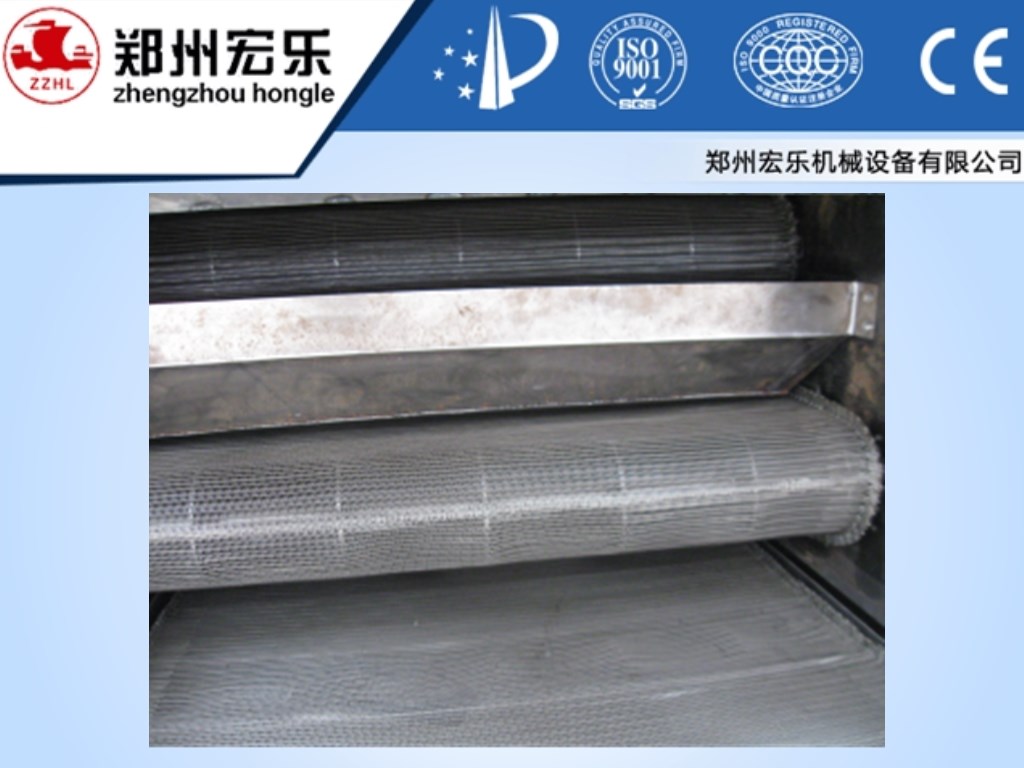

2 Equipment’s con gyration is very excellent. It can use the netlike belt washing system and cooling raw material system.
3 Hot air can be circularly applied, the energy is greatly saved.
4 Unique air dividing device, it makes hot air distribute uniformly; this can guarantee products’ quality.
5 Heating source can be selected from steam, conducting heat oil, electricity, and coal furnace and oil burner

Releated product video: www.youtube.com/watch

 Technical parameters of Belt type drying machine

The main data
1, Dimension: according to customer set: single, three, five. Single: Long 6 * 1.2 * 1.6 m
2, the total power: heating power (22 ---) 30KW speed motor 4--1.1kw (see signs) circulating fan 0.55kw Voltage: 380V Frequency: 50HZ
3 electrically heated tube single power: 1.5kw Voltage: 220v air heating: 400 degrees with 20 per
4 circulating fan: 4--0.37kw 3 sets of voltage: 380V Frequency: 50HZ
5 mesh belt sprocket: Double pitch five minutes and 18 teeth (imperial units 1 minute = 3.175 mm 5 points = 15.875mm)
