Full Automatic 3 Ply 3M Disposable N95 Cup Face Mask Making Machine Ffp2 Kn95 Mask Machine

  • Capcity: 60-80pcs/min
  • Power: 10kw
  • Voltage: 220v/380v
  • Ports: Ningbo / Qingdao/Shanghai
  • Size: 7600*2500*1980mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Ffp2 Kn95 Mask Machine
  • Ffp2 Kn95 Mask Machine
  • Ffp2 Kn95 Mask Machine
  • Ffp2 Kn95 Mask Machine
■ Application and Features

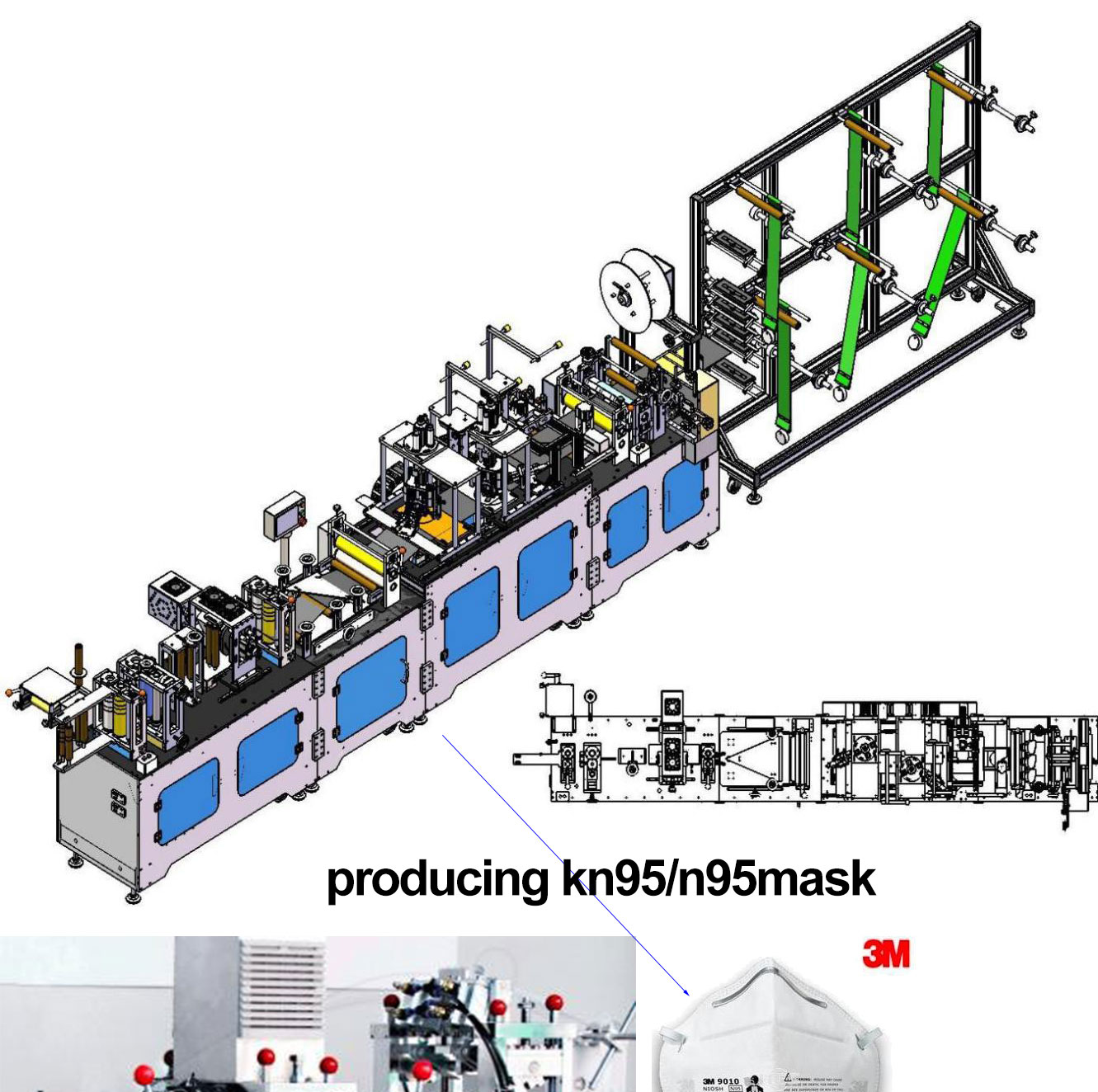

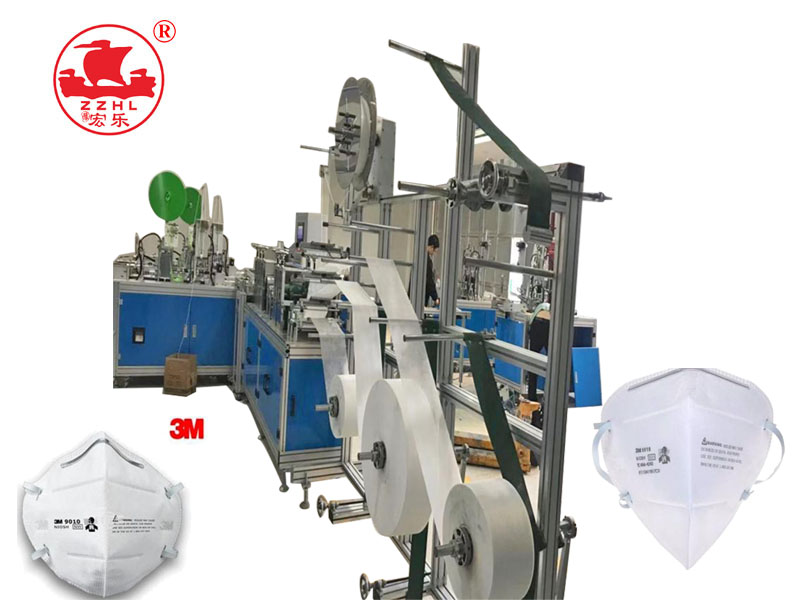

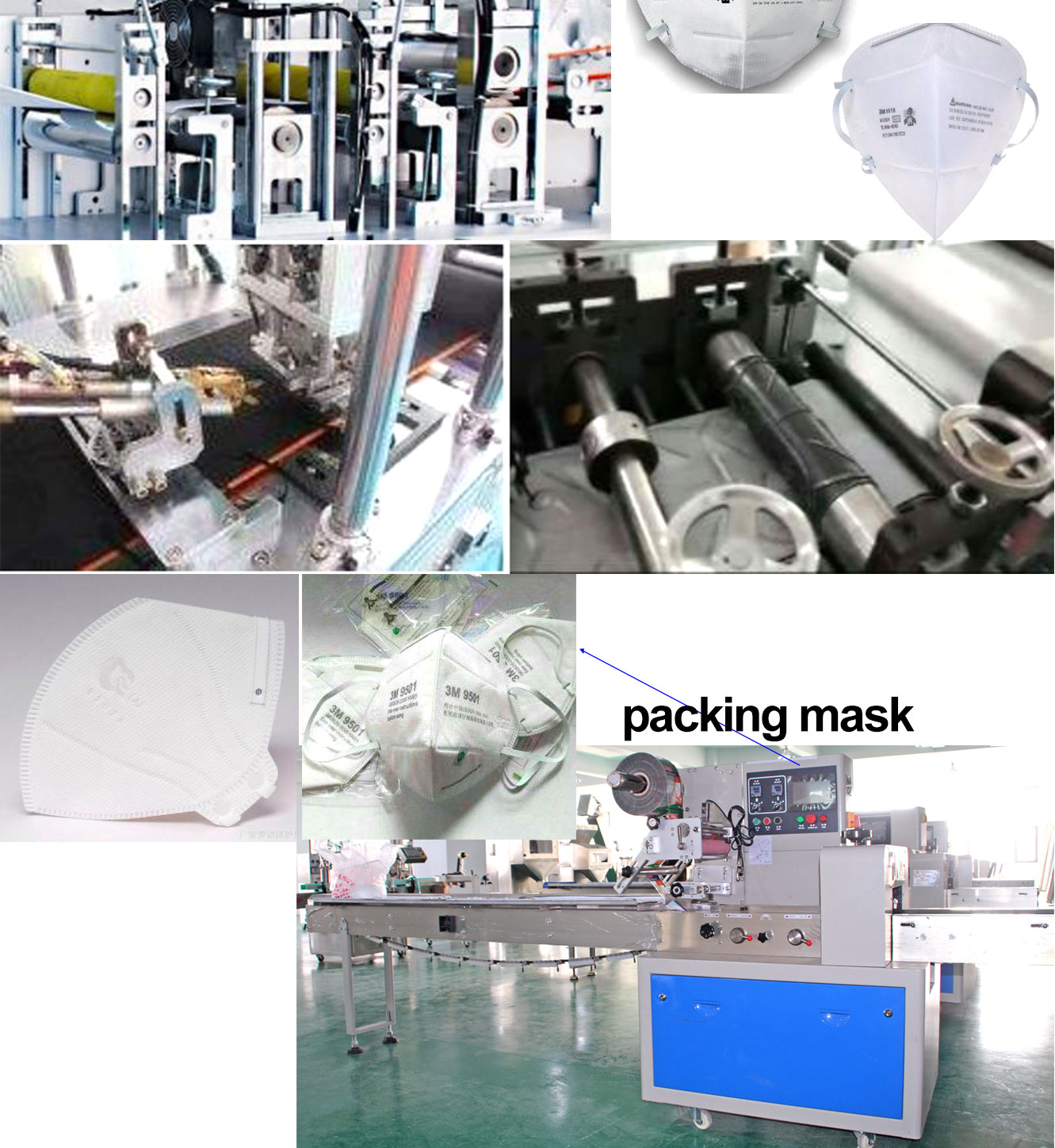

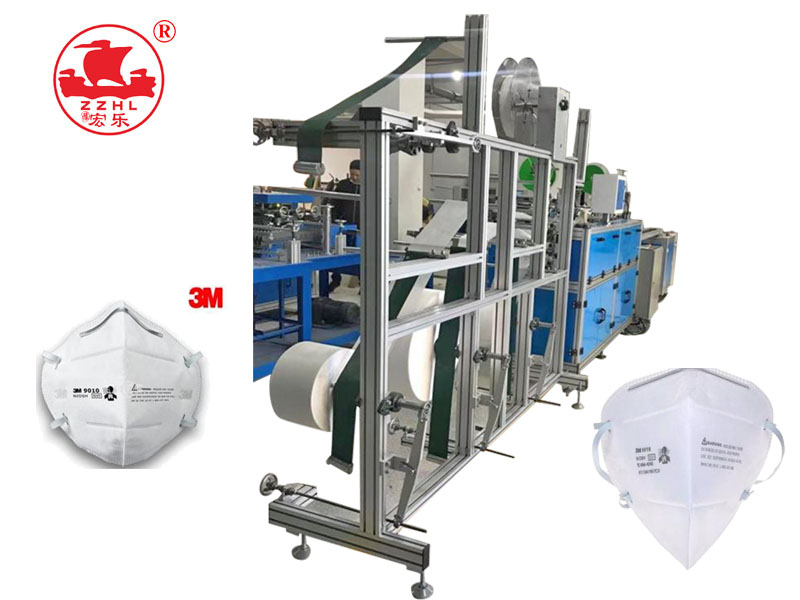

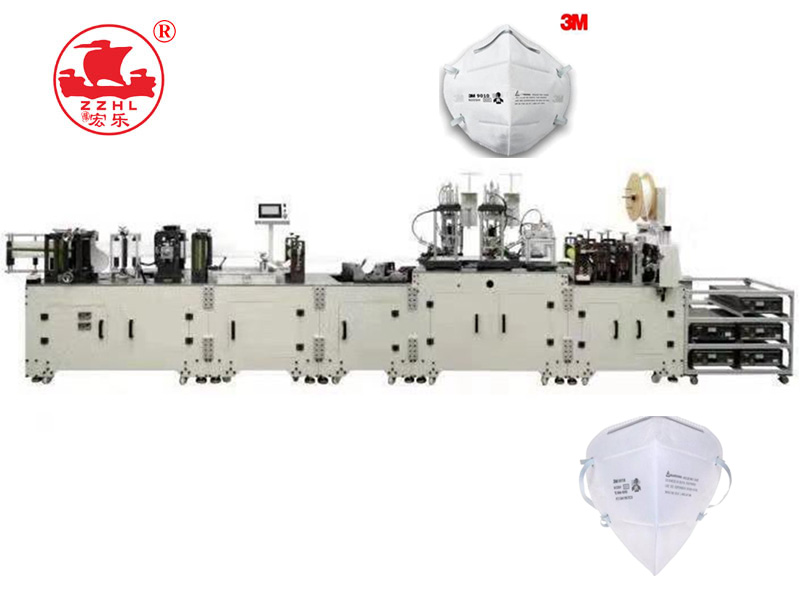

It is a special design to produce blank masks from feeding raw materials, folding, banding, ultrasonic welding to cutting mask with automatic mechanism and extremely high speed.Its main product is N95 non woven 3M face mask for hospital.

Folding mask machine, also known as C-type mask machine, is a fully automatic machine for the production of folding mask bodies.
It uses ultrasonic technology to bond 3 to 5 layers of PP non-woven fabric, activated carbon and filter material, and cuts out the folding mask. Body, can process 3M mask.
According to the different raw materials used, the folding mask machine can produce masks such as N95 . The earband is made of elastic non-woven fabric, which makes the wearer's ears comfortable and pressure-free. can be applied to high pollution industries such as construction and mining.
Advantages:
1.PLC active control, folding mask machine actively counts.
2. 2.simple adjustment equipment for folding mask machine, easy to change materials.
3.The mold is selected for replacement. The folding mouth machine can quickly replace the mold and produce non-like type masks.
4.The entire machine of the folding mask machine uses aluminum alloy, which is beautiful and strong and does not rust.
5.Good feeding and receiving equipment.
6.Folding mask machine has high stability and low failure rate.
Professional production:
Mask machine, Doctor hat machine, non-woven bath cap machine Non-woven shoe cover machine,disposable sleeve machine
Non-woven booting machine
PE plastic shower cap machine,PE plastic shoe cover machine

Technical Parameters of fully Automatic Mask Making Machine Mask Production Line

Mask knowledge:

1.Whether the mask is medical or not has nothing to do with the machine. As long as the mask is sterilized, the mask produced by our machine can be used as surgical mask
2.Common medical masks: mainly composed of three layers of non-woven fabric. The inner layer is ordinary non-woven fabric, and the outer layer is non-woven fabric with waterproof treatment, which is mainly used to isolate the liquid ejected by patients. The filter layer in the middle is polypropylene melt blown non-woven fabric with electret treatment. After the final production, it shall be sterilized by ethylene oxide and kept for 7 days for volatilization toxicity, and then transported by sealed packaging.
3.The full-automatic wiring combination machine is to connect one mask body manufacturing machine with two mask ear belt welding machines. When the mask body is made, the conveyor belt is sent to the mask ear belt welding machine to weld the ear belt part to complete a complete ear belt mask. Only one operator is required to operate the whole production line.
■ Specifications

Video link :https://youtu.be/_SjyFenIE-o

Machine size

7600*2500*1980mm

Pressure

6kg/cm2

Yield

60-80pcs/min

Body material

Aluminum alloy

Weight

2500KG

Control method

PLC

Voltage

220v or customer need

Detection method

Photoelectric detection

Power

10kw

Remarks

A machine can produce a variety of common masks
