Heat pump fruit food dryer

  • Capcity: 180 Loading area (SQM)
  • Power: 38.5
  • Voltage: 380V/50Hz
  • Ports: main ports of china (qingdao, ningbo)
  • Size: 7000×2830×2795/4295 mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • heat pump fruit food dryer
  • food air dryer
  • food dryer machine
  • hot air dryer
  • industrial food dryer
■ Application and Features

ZL-KNC-12P-12A Heat pump fruit food dryer

application of heat pump fruit food dryer

It is suitable for drying materials with high moisture content, long drying period and low drying temperature.

Features of heat pump fruit dryer, food dryer, fruit dryer

1)It is suitable for drying materials with high moisture content, long drying period and low drying temperature.

2Human-machine interface operation, PLC control, temperature and humidity control, intelligent dehumidification, running state display, fault detection, etc.

3)High degree of intelligence, simple operation, can be based on the drying process of different materials set up a number of programs, one machine multi-purpose.

4)Hot air circulation adopts our patented technology, two-ways circulation, heat  multi-times reuse, drying efficiency is high, uniformity is good.

5)Equipment selection industry is optimal, running stable, durable.

6)According to the workshop situation reasonable layout, beautiful, generous, easy to clean.

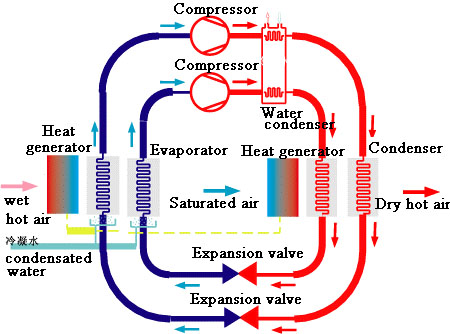

Working principle of equipment







■ Specifications

Specifications of heat pump fruit food dryer

Model
ZL-KNC-12P-12A
ZL-KNC-18P-12A
ZL-KNC-18P-15A
ZL-KNC-24P-15A
ZL-KNC-72P-36A
Voltage/frequency
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz

Rated power of heat pump (Kw)
11
16.5
16.5
22
66
Rated current(A)
22
33
33
44
132
Heating capacity(Kw)
38.5
57
57
77
231
Rated power of deputy heater(Kw)
30
30
30
40
50
Rated current of deputy heater(A)
60
60
60
80
100
heating capacity(Kw)
30
30
30
40
50
Dehumidification capacity(L/H)
30
45
45
60
180
Max. temperature of drying room(℃)
75
75
75
75
75
Ambient temperature range(℃)
0~43
0~43
0~43
0~43
0~43
Electric shock Rating (class)
1
1
1
1
1
Max.pressure at expulsion(MPa)
≤2.8
≤2.8
≤2.8
≤2.8
≤2.8
Noise[dB(A)]
≤75
≤75
≤75
≤75
≤75
Air volume of fan (m3/h)
36000
(in heat pump)
36000
(in heat pump)
72000
(in drying room)
72000
(in drying room)
160000
(in drying room)
Weight(kg)
1000
1400
1400
1800
5000

Drying chamber material
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
Overall dimension(mm)
7000×2830×2795/4295
7000×2830×2795/4295
9000×2830×2795/4295
9000×2830×2795/4295
22000×2830×4500
Air direction model
One direction, horizontal air flow
One direction, horizontal air flow
two direction  alternate, horizontal air flow
two direction  alternate, horizontal air flow
two direction  alternate, horizontal air flow
Trolley number
12 trolley
12 trolley
15 trolley
15 trolley
36 trolley
Loading area (SQM)
180
180
225
225
540
