Hot air fruit and vegetable dryer food drying machine

  • Capcity: Input capacity 60(kg/batch)
  • Power: Heating source 9kW Electricity/ 10kg/h Steam
  • Voltage: 220V /50Hz 1PH or 380V/50Hz 3PH
  • Ports: main ports of china (Qingdao,Ningbo)
  • Size: 1500*1500*2300mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • fruit dryer machine
  • fruit and vegetable dryer
  • fruit dryer
■ Application and Features

 Hot air fruit and vegetable dryer food drying machine



application of  hot air fruit and vegetable dryer food drying machine



 This machine is widely used in food, pharmaceutical, chemical field to reach heating, drying, dehydrating targets.

Application: pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other materials and products;



Functions: heat curing, drying, dehydration.



features of  hot air fruit and vegetable dryer food drying machine

1. Heating sources: water, steam, electricity, gas, LPG, diesel oil, hot air stove etc.

2.Working temperature:

        Water or steam heating: 50~140℃,Max.150℃;

     Hot air stove, diesel oil: 50~300℃

     Electricity: 50~450℃;

3. Temperature-auto control

4.The parts in the machine can be install and loose easily and quickly, easy for cleaning.



5.Meet ‘GMP’ standard.

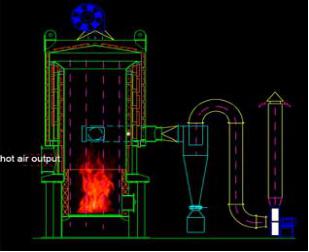

working principle of  hot air fruit and vegetable dryer food drying machine

■ Specifications

  specifications of hot air fruit and vegetable dryer food drying machine



Model

ZLHA-T-T1

ZLHA-T-T2

ZLHA-T-T4

ZLHA-T-T6

ZLHA-T-T8

Model in YY0026-90 standard

RXH-7-C

RXH-14-C

RXH-27-C

RXH-41-C

RXH-54-C

Number of doors

1

2

2

3

4

Overall dimension

L*W*H(mm)

1500*1500*2300

L*W*H(mm)

2300*1500*2300

L*W*H(mm)

2300*2500*2300

L*W*H(mm)

2300*3500*2300

L*W*H(mm)

4500*2300*2300













Total weight(kg)

480

1080

1520

1960

2400

Input capacity

60(kg/batch)

120(kg/batch)

240(kg/batch)

360(kg/batch)

500(kg/batch)

Electric voltage(V)

220V /50Hz 1PH or 380V/50Hz 3PH

Motor power

0.15(kW)

0.3(kW)

0.6(kW)

0.9(kW)

1.2(kW)

Fan Power

0.45(kW)

0.45(kW)

0.45*2(kW)

0.45*3(kW)

0.45*4(kW)

Heating source

9kW Electricity/

15kW Electricity/

30kW Electricity/

45kW Electricity/

60kW Electricity/



10kg/h Steam

18kg/h Steam

36kg/h Steam

60kg/h Steam

80kg/h Steam

Steam pressure

0.2-0.4Mpa@80~120°C inside the dryer, 0.4-0.8Mpa@120~140°C inside the dryer

Evaporation area

7.1(m2)

14.1(m2)

28.3(m2)

42.4(m2)

56.6(m2)

Efficient Volume

1.3(m3)

2.6(m3)

4.9(m3)

7.4(m3)

10.3(m3)

Wind volume(m3/h)

1400

2800

5200

8000

13800

Temperature range(°C)

Steam: 50-140°C, max 150°C; Electricity: 50-250°C

Numbers of trolley(set)

1

2

4

6

8

Dimension of trolley

L*W*H: 710*950*1510(mm)





Numbers of tray(pcs)

24

48

96

144

192

Dimension of tray(mm)

L*W*H: 460*640*45 or 460*640*30





Main Material

Chamber & trolley & tray: SS304, exterior cover: SS201/ Carbon steel

Open doors

Front

The hot air generator can be choose except electric:
