Industrial hot air dryer

  • Capcity: 100~180 Input capacity (Kg/batch)
  • Power: 2.2Kw
  • Voltage: 380V, 220V or other to fit local electric standard
  • Ports: main ports of china (Qingdao, Ningbo)
  • Size: 2230*1200*2300 mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • food air dryer
  • food dryer machine
  • hot air dryer
  • industrial hot air dryer
  • onion dryer machine
■ Application and Features

industrial hot food fruit air dryer machine



application of industrial hot food fruit air dryer machine

 pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other materials and products.

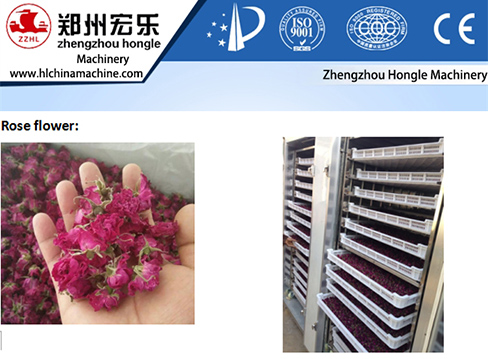

Rose flower:



Fruit paste:



 Honeysuckle:

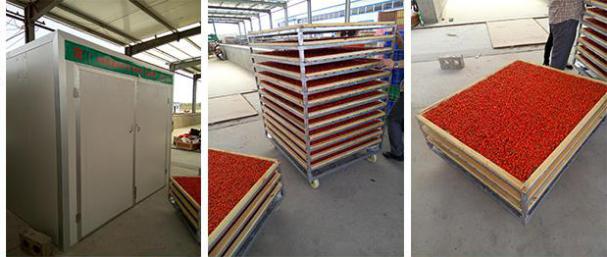

 Wolfberry:



features of industrial hot food fruit air dryer machine

1.Use electricity as heat source, PTC heater as the core heating components, with long service life.

2. Drying temperature: 30~80℃.

3. PLC control, provide as much as 10 different drying procedures according to different material drying requirement

4.Temperature and humidity can be controled automatically.

5. Parts in the dryer are designed to quickly remove, quick installation, easy to clean.

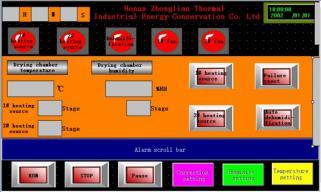

 Control system of industrial hot food fruit air dryer machine

1. Controled by PLC via touch screen, easy operation, decrease the wrong operation because of operator;

2. Use PTC as the heat exchanging element, save energy, long service life

3.The drying temperature lock with PLC, so the drying temperature is more accurate, upper and bottom temperature difference within 2 celsius; The dehumidification fan can start and shut off automatically according to PLC program;

4. With over load protection, the drying curve can be recorded.



■ Specifications

 specifications of  industrial hot food fruit air dryer machine



Model

ZL-DR-14

ZL-DR-28

Overall dimension (mm)

2230*1200*2300

2230*2400*2300

Input capacity (Kg/batch)

100~180

200~360

Electric voltage

380V, 220V or other to fit local electric standard

Motor power (Kw)

2.2Kw

4.4Kw

Heating source

Electricity   14.2Kw

Electricity   28.4Kw

Thermal area (Sqm)

24

44

Wind Volume (Cbm/h)

5600

11200

Temperature range (celcius)

30~80

Numbers of Trolley (set)

2

4

Dimension of trolley (mm)

900*780*1620

Numbers of Tray (pcs)

56

112

Dimension of tray (mm)

740*430*45

Material:

1, drying room stainless steel (for option)

2, drying room choi steel (standard)

Trolley is stainless steel, tray is PP material
thermal insulation material: Polyurethane, TH-75mm

Open Doors:

Front
