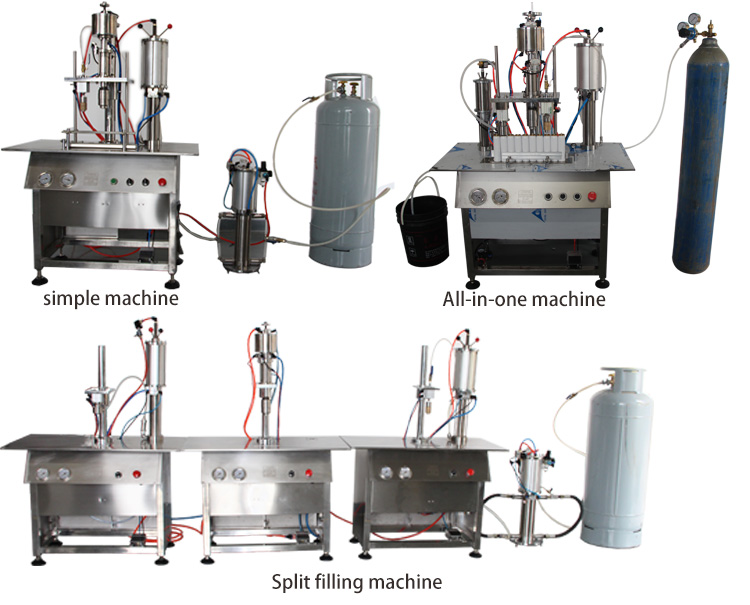

The filling machine applied to aerosol cans with various specifications and can fill any aerosol can with the height within 330mm, and the diameter of aerosol cans could be adjusted freely.

1.Liquid filling machine:

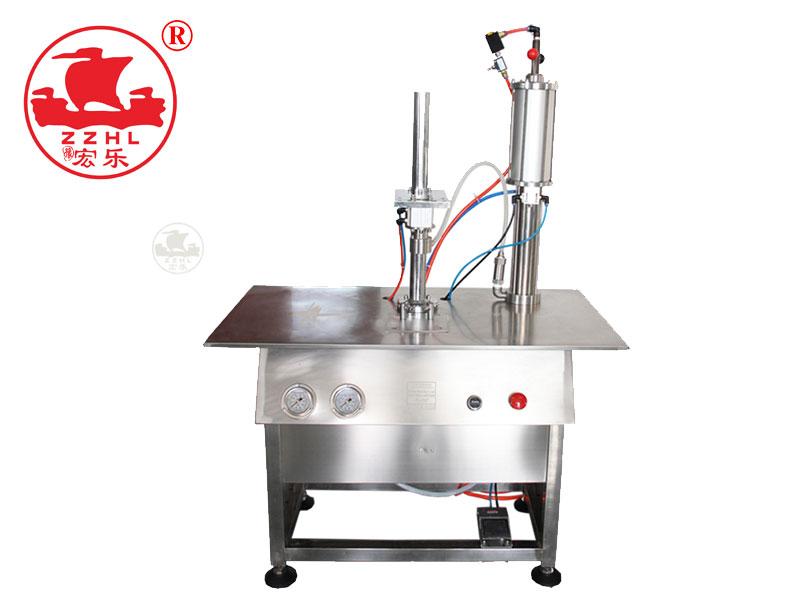

HL-1600B semi-automatic filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company.

It pours liquid raw materials of aerosol products into tanks according to requirement, with ±1% refilling accuracy. The maximum filling capacity is 750ML, and filling speed is 600-1200 cans per hour. You can choose different products based on different models. The overall dimension of filling liquid machine is 1000*600*1350mm

Maximum Filling Volume (ml):20-750ml

Repeat Filling Accuracy:±1.0%

Working Air Pressure (Mpa):0.45~0.7

Maximum Air Consumption (L/min):60

Production Capacity (can/h):800-1500

Packing dimension:1100*600*1500  90kg  (L*W*H).

2.Can sealing machine

Sealed diameter and sealed depth are easy to adjust, and sealing quality is reliable. With high sealing speed, reliable sealing quality, as well as simple operation, adjustment and maintenance requirement. The machine is specially used for internal inflating sealing of global and universal 1-inch aerosol valve.

Adjustable Sealing Diameter (mm):26.5~28.5)±0.15

Adjustable Sealing Depth (mm):(0~7)±0.15

Applicable Aerosol Can Height (mm):60~350

Diameter (mm):20~100

Working Pressure (MPa):0.45~0.7

Maximum Air Consumption (L/min):50

Production Capability (can/h):1200~1500

Packing dimension:1100*600*1500  110kg  (L*W*H).

3.Gas filling machine

gas filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company.

Semi-automatic LPG, DME gas fillings are applicable to various gases of aerosol products.

The filling machine equipped with a two-way pressurized booster pump, which can pressurize LPG, DME up to 1.0-120 Mpa and fluidize the LPG, DME, so as to accelerate filling speed and accurate measuring.

The maximum filling capacity is 500ML,The filling accuracy is ± 0.5% and filling speed is 600-1200 cans per hour.

The filling machine applied to aerosol cans with various specifications and can fill any aerosol can with the height within 330mm, and the diameter of aerosol cans could be adjusted freely.

Maximum Filling Volume (ml):20-500ml

Repeat Filling Accuracy:±1.0%

Applicable Can Model:Height 60~350mm  Diameter 20-100mm

Working Pressure (Mpa):0.45-0.8Mpa

Maximum Air Consumption (L/min):60

Production Capability (can/h):800-1500

Packing dimension::1100*600*1500  120kg  (L*W*H).

                  450*380*850    35kg   (L*W*H).
