Semi Automatic Hard Cover Paper Board Glue Machine Stainless Steel Hot Melt Pasting Gluing Machine

  • Capcity: Max.gluing width 700mm
  • Power: 120w
  • Voltage: 220v 60Hz
  • Ports: Ningbo / Qingdao
  • Size: 1030*450*400mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Pasting Gluing Machine
  • Pasting Gluing Machine
  • Pasting Gluing Machine
  • Pasting Gluing Machine
  • Pasting Gluing Machine
■ Application and Features

Working principle:

Roller immersion in the glue plate, when roller rotation, paper (or other material with smooth surface)feeding and coating at the same time, the glue evenly over the surface.The feeding speed could adjustment.

Product Application:

Gluing Machineis under side gluing machine, it is adopt stainless steel, effective anti - glue corrosion. It is mainly used for the gluing of different thickness of paper, paperboard, Special paper, leather, EVA, Nonwoven fabric, Oxford cloth,Etc. Paper box, carton box, Corrugated box, Leather case, note book making, EVA puzzle, Instead of manual gluing, improve
the efficiency of work.The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.

Specification for Gluing Machine:

Model

Unit

HL-380

HL-600

HL-720

Gluing side



Under Side

Under Side

Under Side

Max.gluing width

mm

500

700

1000

Min.gluingthickness

g/m

0-300

0-300

0-300

Paper thickness

g

80-3000

80-3000

80-3000

Materials thickness

mm

0.1-10

0.1-10

0.1-10

Speed

m/min

28

28

28

Motor Power

w/v/hz

120w 220v 60Hz

120w 220v 60Hz

370w 220v 60Hz

Dimension

mm

800*450*400

1030*450*400

1350*450*400

Package Dimension

mm

860*390*430

1060*390*430

1360*390*510

Net Weight

kg

50

60

80

Gross Weight

kg

55

65

85

Price







Glue choice



White latex(Polyethylene glue)

Paper Feed



By hand

Cleaning way



By hand

Automatic degree



Semi-automatic

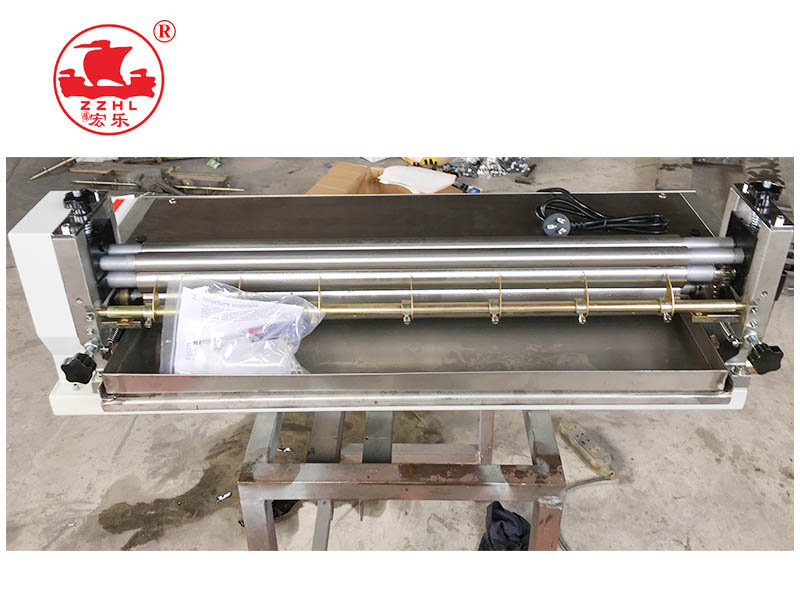

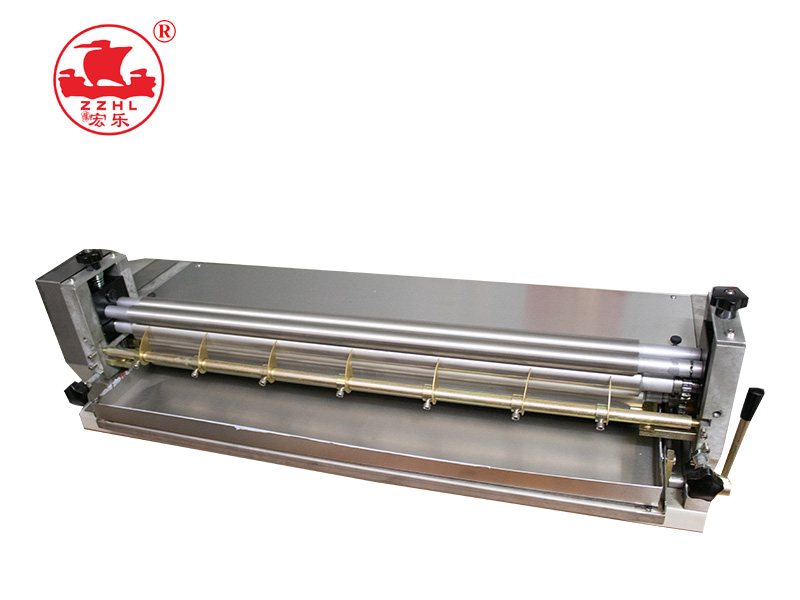

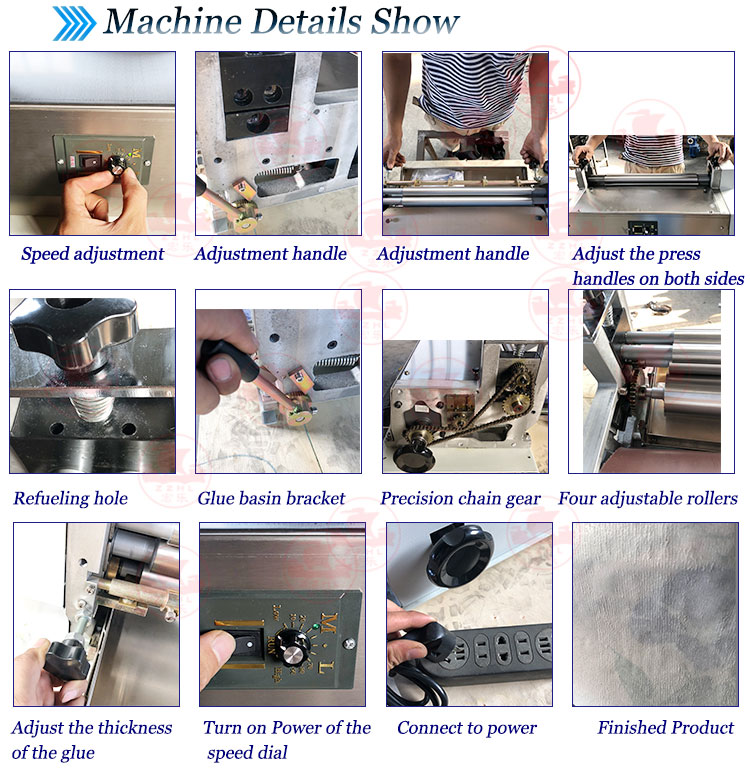

This machine consists of:

1 glue basin loading and unloading handle.

2 gluing roller.

3 platen roller

4 Platen roller adjustment handle.

5 protective cover.

6 motor speed governor.

7 glue basins.

8 bracket.

9 handles.
