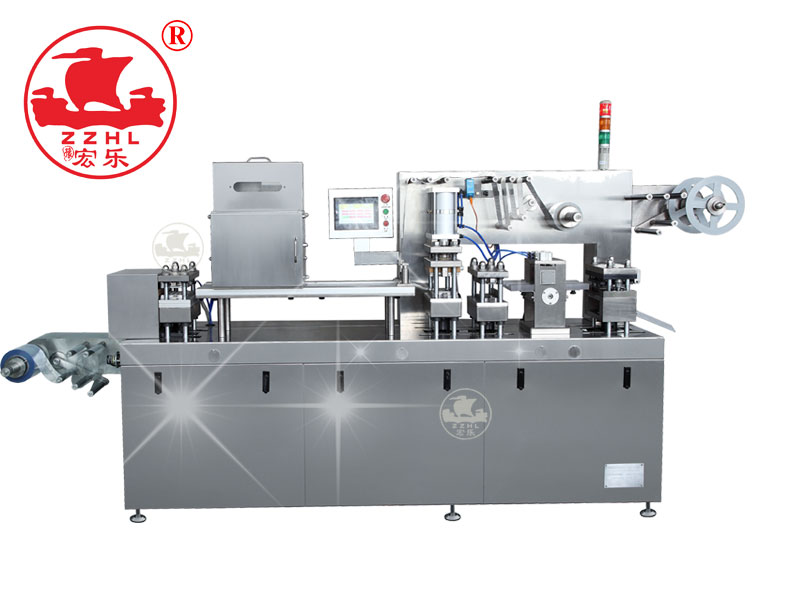

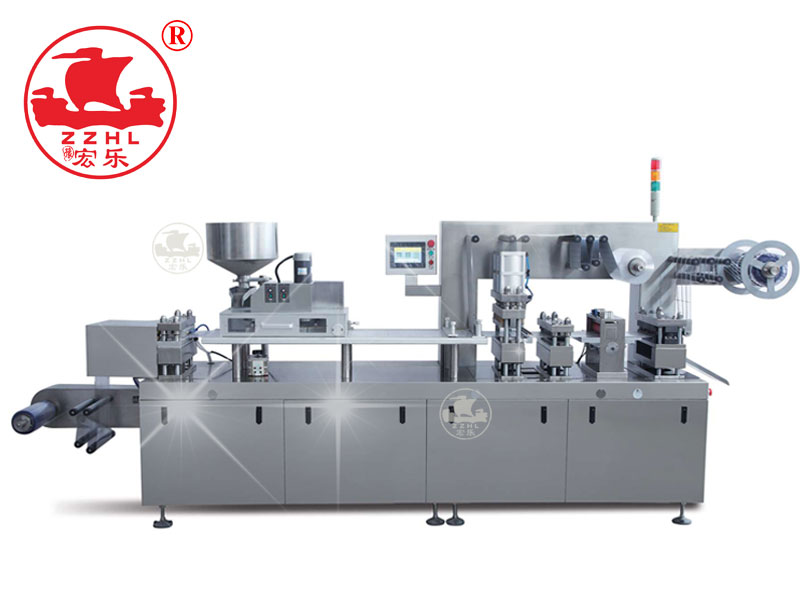

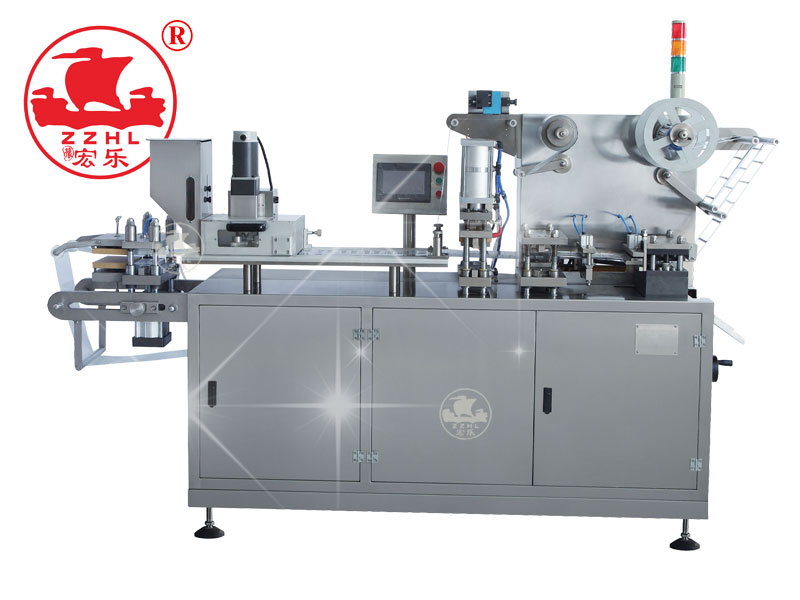

4000 edition/hour Automatic pharmacy honey tablet blister packing machine

  • Capcity: 4000 edition/hour
  • Power: 3.2 kw
  • Voltage: 220v/380v
  • Ports: qingdao,ningbo
  • Size: 2070*650*1060 mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • tablet blister packing machine
  • tablet blister packing machine
  • tablet blister packing machine
  • tablet blister packing machine
■ Application and Features



you may need?(According to product width and capacity) small high speed pharmaceutical papercard blister packing machine

Product Application Show

Applicable to pharmaceutical, food, health products industry packaging plain tablets, sugar-coated tablets, capsules, can also be packaged tomato sauce, chocolate sauce, honey and so on.small high speed pharmaceutical papercard blister packing machine

Features of blister packing machine

1. Frequency conversion stepless speed regulation, mechanical traction;small high speed pharmaceutical papercard blister packing machine
2. The stroke is adjustable, the adjustment range is 30-95mm, convenient adjustment, accurate synchronization;small high speed pharmaceutical papercard blister packing machine
3. The standard is equipped with four stations (forming, heat sealing, creasing, punching) and four posts are installed at each station to make adjustment more convenient and stable;small high speed pharmaceutical papercard blister packing machine
4. The use of plate mold, positive pressure molding, batch number, indentation tangent, aluminum foil / aluminum aluminum automatic release;small high speed pharmaceutical papercard blister packing machine
5. Configure a Universal Feeder with a filling rate of 99.5% or more;small high speed pharmaceutical papercard blister packing machine

■ Specifications

Technical Parameters

Model HL-120
Punch Frequency 10-40times/min
Max. Formed Depth 16mm
Travel Range 30-95mm (adjustable)
Max. Formed area 120*90mm
Air Pressure 0.4-0.6Mpa
Total Power 380V/220V 50Hz 3.2KW
Main Motor Power 0.75Kw
PVC Hard Pieces 0.15-0.5*130(mm)
PTP Aluminum Foil 0.02-0.035*130(mm)
Dialyzingpaper 50-100g*130mm
Air pump volume flow ≥0.2²/min
Heat seal power 0.5kw
Up and down side heat power 0.5+0.5kw
Size 2070*650*1060 mm 560kg
