Press Oil Processing Machine

Edible Oil Refining Machine Small Scale Palm Small Oil Refinery Machine

  • Capcity: 500 kg/batch
  • Power: 0.75kw *2
  • Voltage: 220v/380v
  • Ports: Ningbo / Qingdao/Shanghai
  • Size: 2600*1000*2300mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Oil Refine Machinery
  • Oil Refine Machinery
  • Oil Refine Machinery
  • Oil Refine Machinery
  • Oil Refine Machinery
■ Application and Features

Description

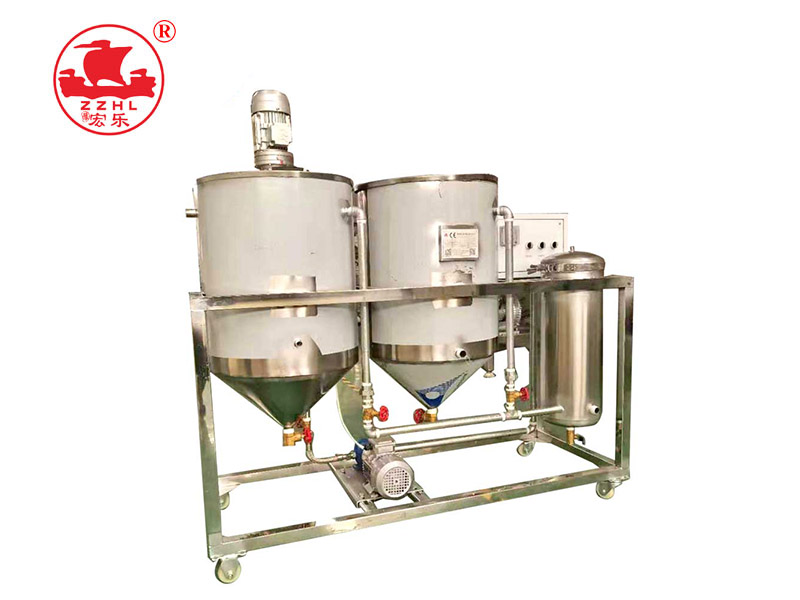

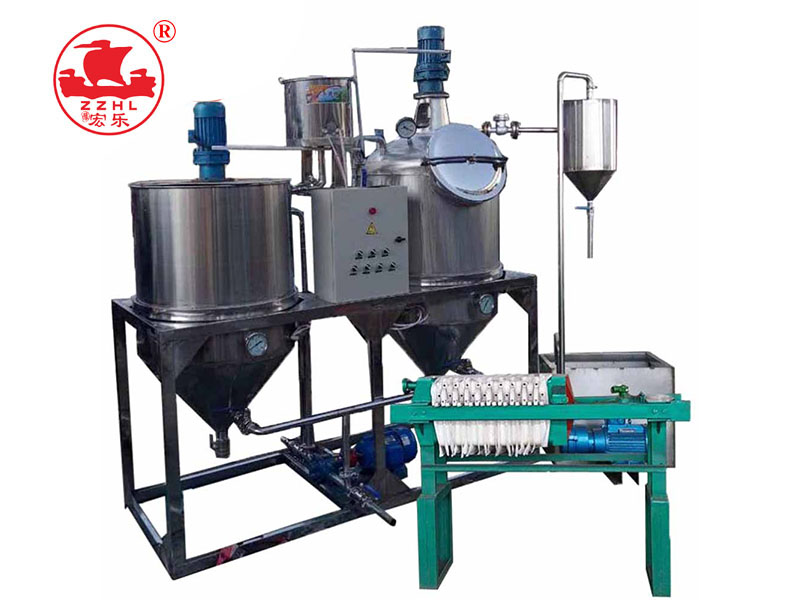

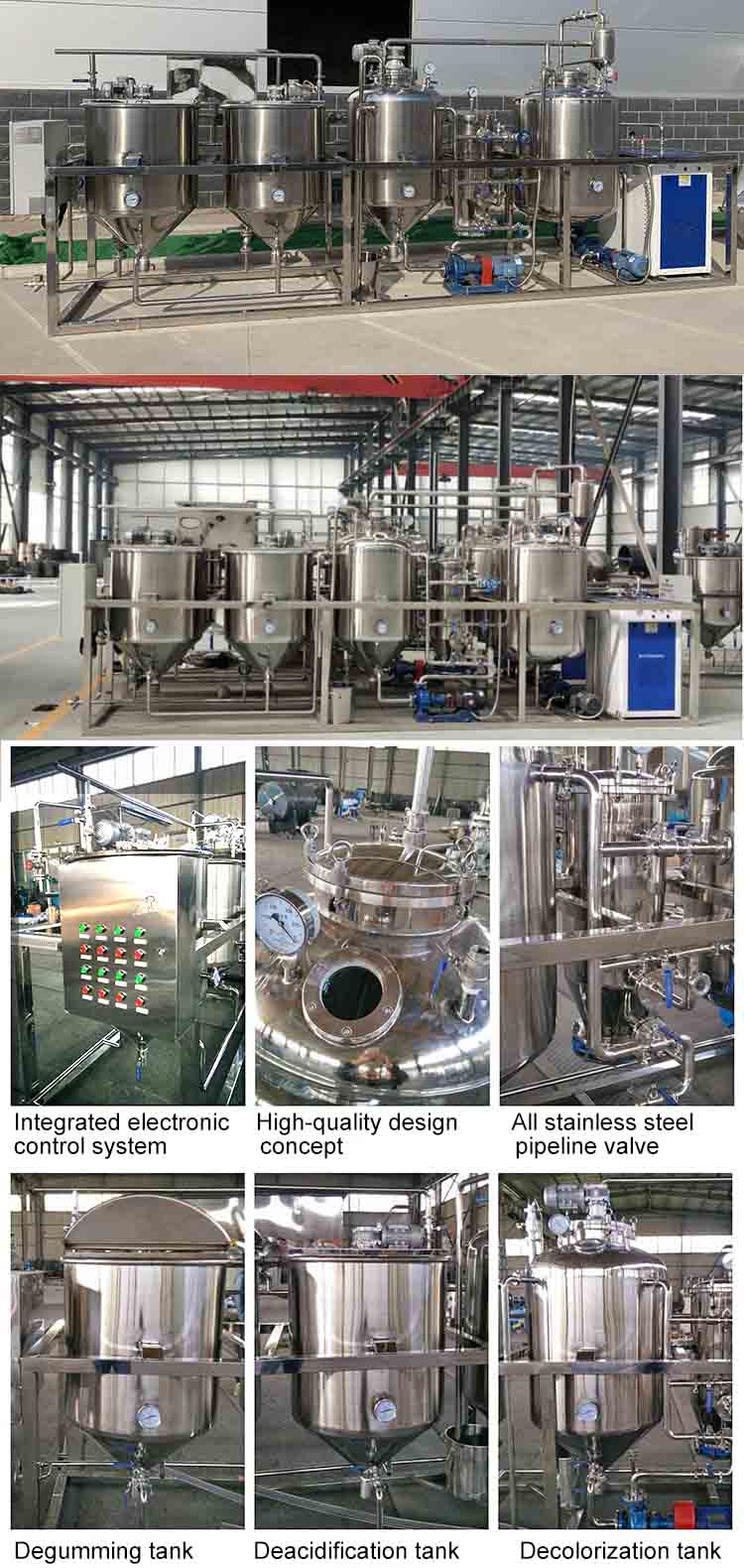

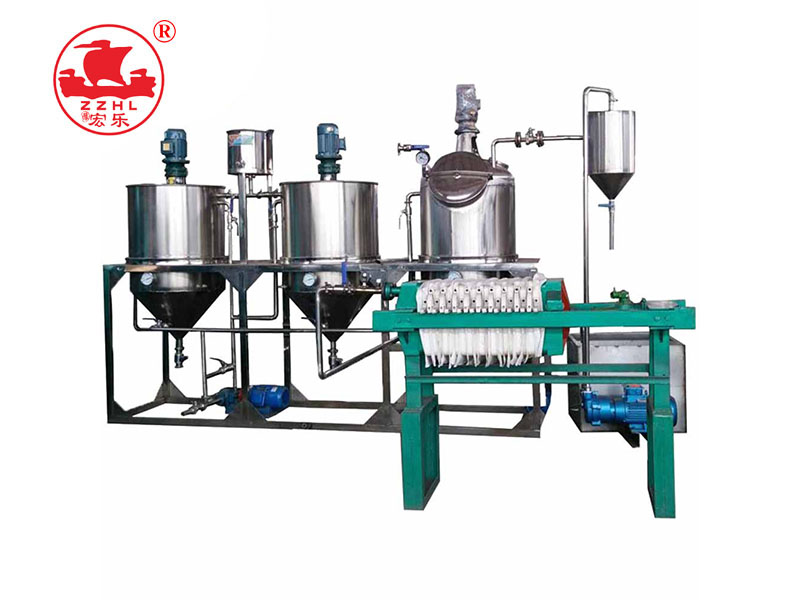

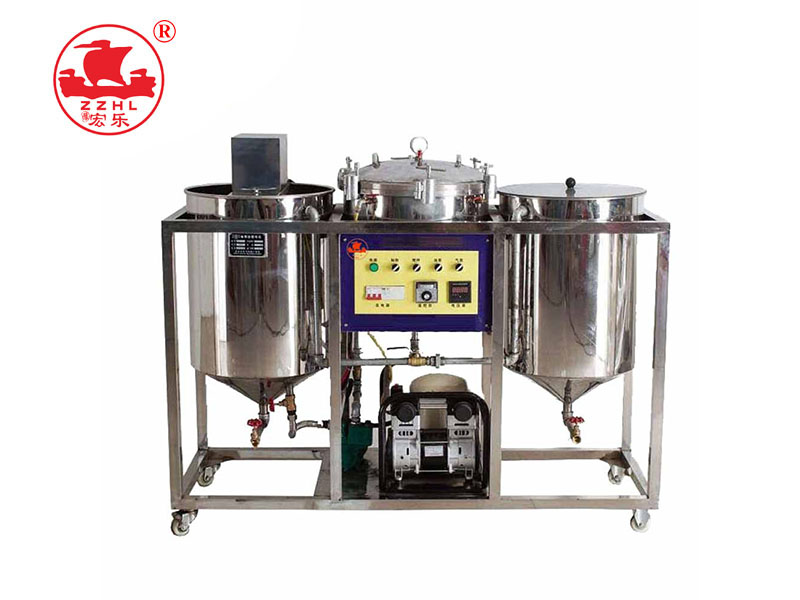

It consists of refining tank, filter tank, finished product tank, oil pump, motor and electric heating system. It can realize degumming, drying and filtering of crude oil.
In order to meet the needs of small-scale oil refineries, Hongle Machinery has successfully developed a complete set of units dedicated to oil refining in small-scale oil refineries, realizing the integrated flow-line operation of dephosphorization,degumming and filtration, thus realizing the miniaturization of large-scale oil refining and the civilianization of industrial refineries. Now, Hongle Machinery Complete sets of refinery equipment are speeding up to enter small and medium-sized oil refineries all over the world, which are well received by oil users. The refined oil products of the refined oil equipment meet the national standard of edible oil at or above the second level, and can be directly filled and sold!
Operational procedures:
Crude Oil - Degumming (Washing)- Dehydration (Heating and Drying) - Filtration - Product Oil
Treatment effect:
The oil treated by refining machine has transparent color, no precipitation for a long time, no foam in the pot, little fume,and can meet the national edible oil standard. It can be directly filled and sold, and is suitable for processing incoming materials and small-scale oil processing plants.
Characteristic:
1. Food grade stainless steel is used and polished.
2. Simple design, exquisite appearance, improve customer satisfaction.
3. The operation data are all displayed by the instrument, which is easy to operate and safe to operate. After telephone
training, the ordinary staff can work directly.
4. It can realize dephosphorization and dehydration of oil products.



Specifications of Small Edible Oil Refiner:

Capacity :150kg/batch
Capacity :400kg/batch
Capacity :600kg/batch
Specification
HLJL-50A
HLJL-75A
HLJL-75D
Capacity
150 kg/batch
400kg/batch
600Kg/batch
Power
0.37kw
1.48kw
1.48kw
Electric heating power
5kw
9kw
9kw
Volume
100L
200L
200L
Diameter
500mm
750mm
750mm
Refine Tank
1
1
2
Voltage
220/380v
380v
380v
Weight
165kg
220kg
260kg
Size
1800*680*1400mm
2200*800*1400mm
2950*830*1520mm
function
Degumming and dephosphorization, dehydration, filtration
Degumming and dephosphorization, dehydration, filtration
Degumming and dephosphorization, dehydration, filtration




Model
Parameter

YJY-L1
working volume:360L
Size: 1450*580*1540
power:8KW/380v
YJY-L2

working volume:500L
Size: 2750*850*1990mm
power:13.5KW/380v
YJY-L3

working volume:800L
Size: 3640*850*1990mm
power:24KW/380v
YJY-L4

working volume:980L
Size:4750*850*1990mm
power:27KW/380v
