Snack Processing Machine

Sandwich pots, Boil sugar pot

  • Capcity: 50L
  • Power: 12kw
  • Voltage: 380V or Custom
  • Ports: Shanghai / Ningbo
  • Size: 800mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • sandwich-pots
■ Application and Features

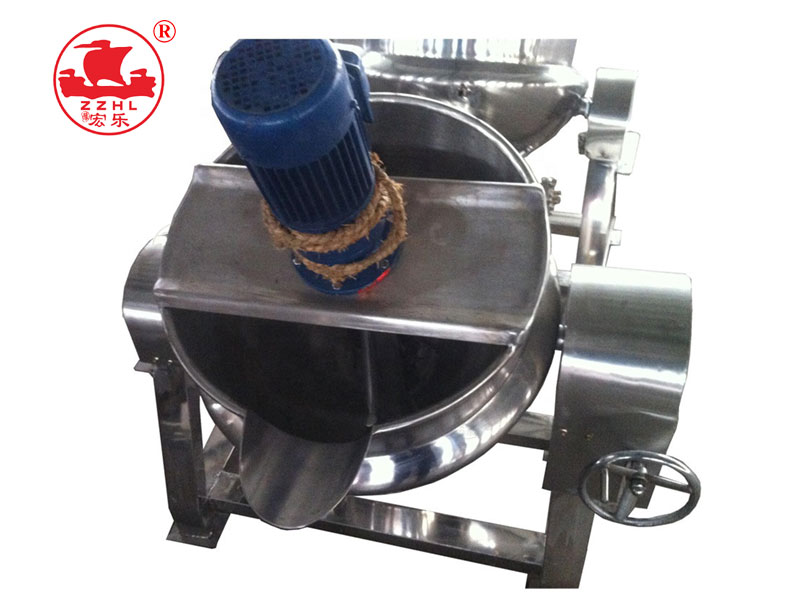

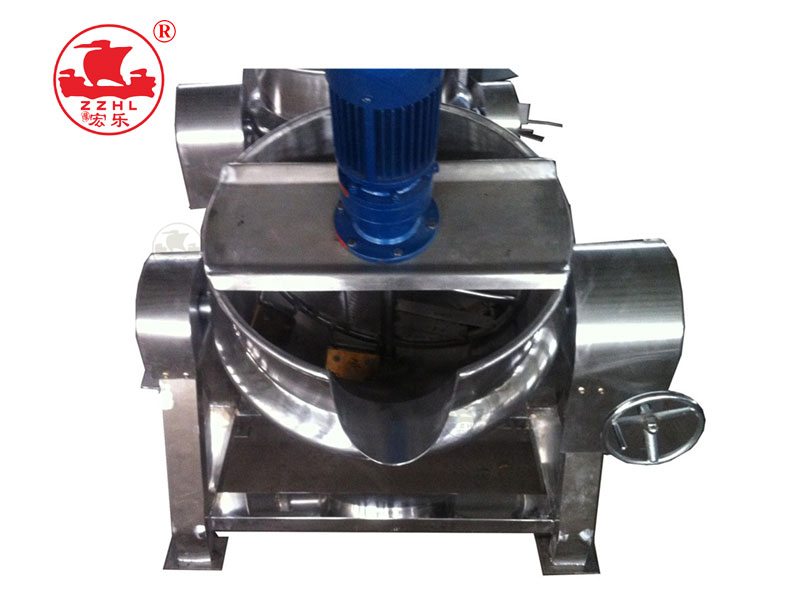

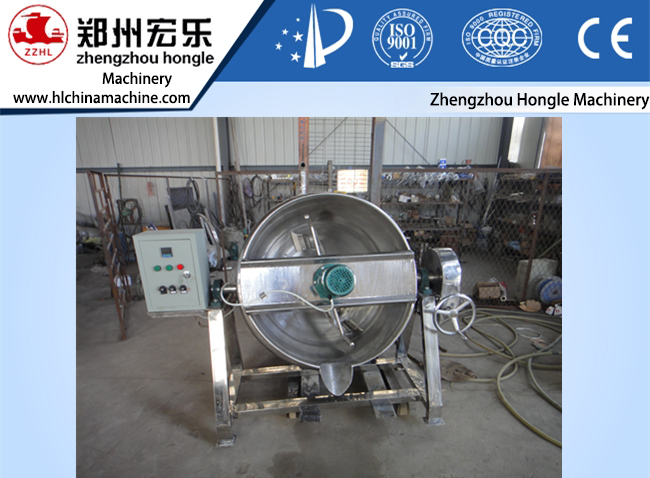

 Steam heating, stainless steel, tiltable, with stirring (optional). Steam as a heat source, with a large heating area, high thermal efficiency, heating evenly. Material mixing form using scraping scraping, scraping, non-stick pan, Uniform, in line with health requirements. Safety devices complete, beautiful appearance, easy installation, safe and reliable.

■ Specifications

electric heating sandwich pot

Model SMCG-050D SMCG-100D SMCG-200D SMCG-300D SMCG-400D SMCG-500D SMCG-600D
Volume 50L 100L 200L 300L 400L 500L 600L
Diameter of the inner pot 500mm 700mm 800mm 900mm 1000mm 1100mm 1200mm
Depth of the inner pot 420mm 470mm 520mm 570mm 620mm 670mm 720mm
Thickness of board material 3mm/3mm 3mm/3mm 3mm/3mm 3mm/3mm 3mm/3mm 4mm/3mm 4mm/4mm
Pot height 800mm 840mm 860mm 1000mm 1035mm 1110mm 1165mm
Power specification 380V/12kw 380V/18kw 380V/18kw 380V/18kw 380V/24kw 380V/24kw 380V/24kw



steam heating sandwich pot

Model SMCG-050Q SMCG-100Q SMCG-200Q SMCG-300Q SMCG-400Q SMCG-500Q SMCG-600Q
Volume 50L 100L 200L 300L 400L 500L 600L
Diameter of the inner pot 500mm 700mm 800mm 900mm 1000mm 1100mm 1200mm
Depth of the inner pot 420mm 470mm 520mm 570mm 620mm 670mm 720mm
Thickness of board material 3mm/3mm 3mm/3mm 3mm/3mm 3mm/3mm 3mm/3mm 4mm/3mm 4mm/4mm
Pot height 800mm 840mm 860mm 1000mm 1035mm 1110mm 1165mm
Steam pressure 0.35Mpa 0.35Mpa 0.35Mpa 0.35Mpa 0.35Mpa 0.35Mpa 0.35Mpa
