Vegetable Fruit Processing Machine

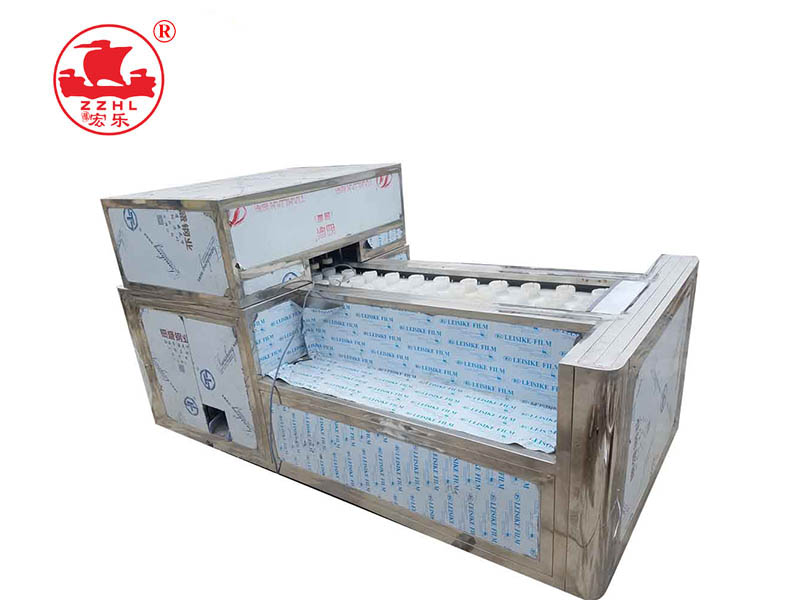

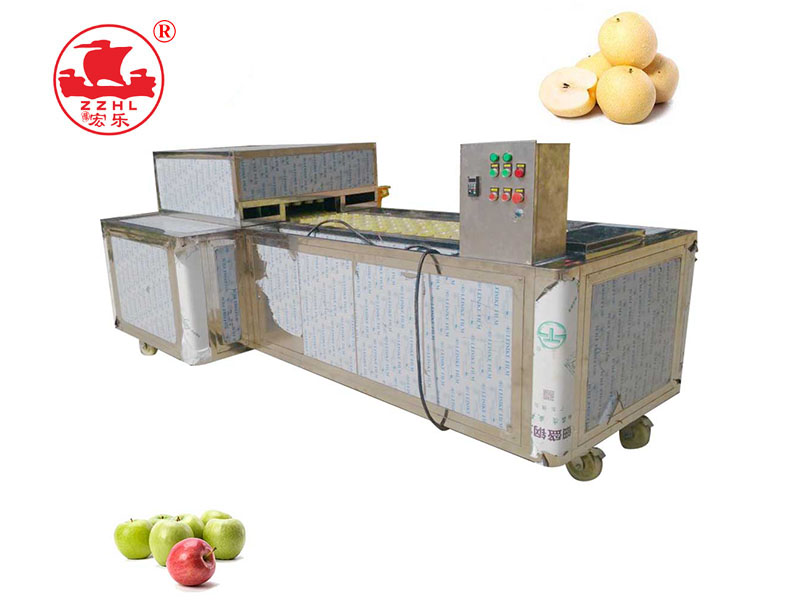

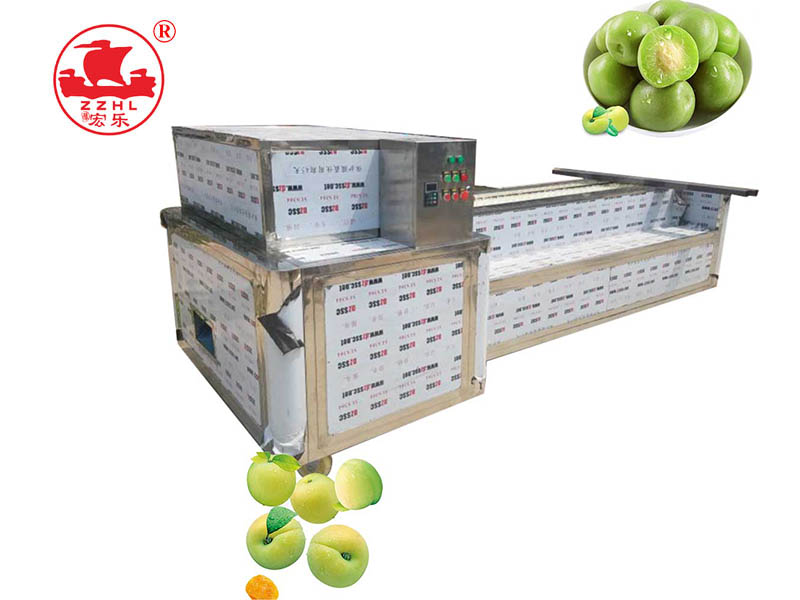

Semi Automatic Track Type Apple Pear Green Plum Coring And Cutting Petals Machine

  • Capcity: 208pieces/min
  • Power: 2.2KW
  • Voltage: 220v/380v
  • Ports: Qingdao/Ningbo
  • Size: 3000 * 1500 * 1300(mm)
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Green Plum Coring And Cutting Petals Machine
  • Green Plum Coring And Cutting Petals Machine
  • Green Plum Coring And Cutting Petals Machine
  • Green Plum Coring And Cutting Petals Machine
■ Application and Features

 This product is designed for the development and design of an integrated fruit core-cutting and half-cutting machine for apples and pears. The two steps of core-cutting and half-cutting can be completed simultaneously, achieving the effect of "one machine for multiple machines". According to the characteristics of apples/pears: the core is large and the flesh is thick, and the whole is round. Our company specially developed this equipment, which can cut the fruit in half, eight and four.

This device features as follows:

1. because apple/pear is very round need accurate positioning, in order to core clean. The equipment is upgraded from the original six-edge roller belt to double-chain Belt Belt, and the dividing box is positioned precisely to achieve the effect of locating the focus center point on time, each enucleation action can be accurately located to the center of the apple/pear.

2. The core removal needles are made of stainless steel, which is very hard, and the apples/pears after core removal are not easy to turn black, and the needle will not be easily damaged due to long-term wear. And this machine needle with the positioning plate accurate point, positioning based on the apple/pear core can be easily flushed out.

3. Because the apple/pear shape makes it difficult to locate the center of the device, we have made a delicate design for the traditional conveyor belt, adding the traditional fruit-carrying holes to the self-designed self-control center silicone bowl, when we put the apple/pear into the hole, the device can easily control the center, thus achieving the perfect directional precision core removal effect.

4. The most attractive feature of this device is that it can remove the core of an apple/pear and cut it in half synchronously. At the same time, the core can be removed and the apple/pear can be divided into two halves (two halves, four petals, six petals, eight petals) by a cutting device. The device is a separate part of the device designed according to the customer's requirements for the fruit. By matching with the automatic control center device on the conveyor belt, the apple/pear cored section can be positioned 360 degrees longitudinally after the cored section.

 5.the exterior design is all by 201 stainless steel material full package, high-end, the atmosphere shows exquisite. The utility model not only ensures the beauty degree of the equipment, but also conforms to the food safety standard.

■ Specifications
PARAMETER

Model

HLPG-208

HLPG-78

Capacity

 208pieces/min

78 pieces/min

diameter range

customized according to user requirements

customized according to user requirements

Weight

450KG

450KG

Machine Size

 3000 * 1500 * 1300(mm)

2000*1500*1300(mm)

Working Voltage

380V POWER: 2.2 kw

380V POWER: 1.5 kw
