Animial Feed Processing Machine

Chaff Cutter HL-9Z5.0

  • Capcity: 4-4.5(t)
  • Power: 5.5(kw)
  • Voltage: 220v/380v
  • Ports: main ports of China
  • Size: 2690*1210*2390mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • hand chaff cutter
  • hand chaff cutter
  • hand chaff cutter
  • parts of hand chaff cutter
■ Application and Features

 Chaff cutter

Introduction of chaff cutter

The machine 9Z-5.0 chaff cutter, this model is suitable for a small dairy farm , which can cut crop stalks into small pieces to feed animals. Such as maize stalk, rice/ wheat straws, sugarcane stalk, alfalfa grass and so on.

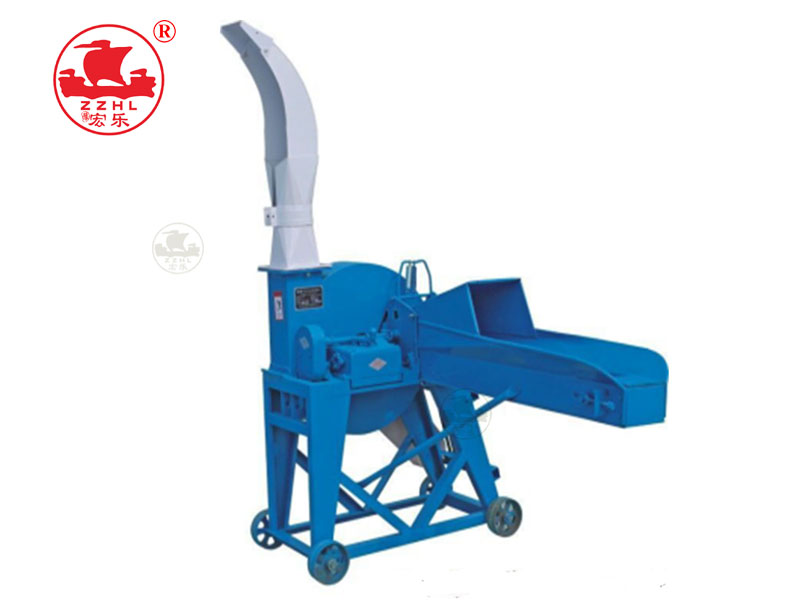

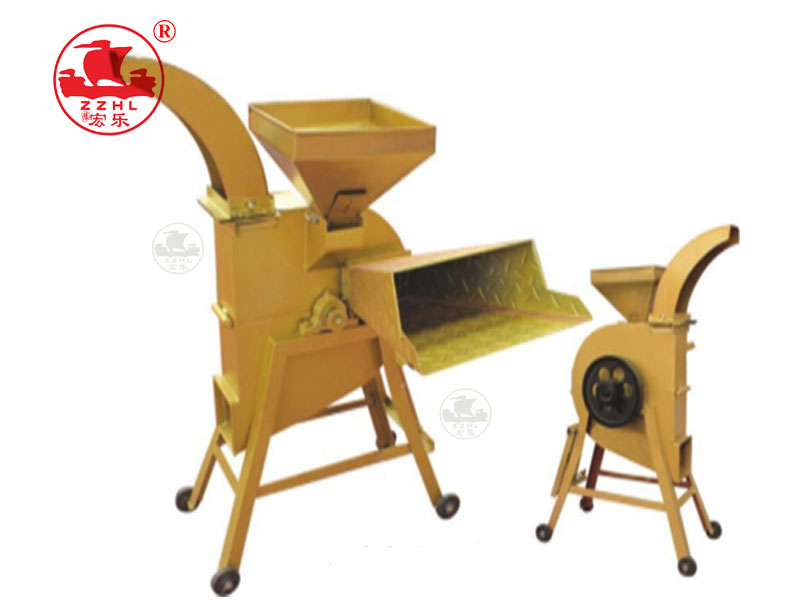

Picture of chaff cutter

straw chaff cutter straw crusher machine
straw chaff cutter straw crusher machine
straw chaff cutter straw crusher machine

Features of chaff cutter

The power type of the chaff cutter: electric motor or diesel engine.
The power transmission to the spindle, the spindle and the other end of the gear through the gear box, universal joint or the like after the power is transmitted to the governor pressure Kun grass, when the material to be processed into the grass between the upper and lower pressure Kun, Cao Kun clip is pressed and hold a certain speed into a cutting mechanism, through the high-speed rotary tool running, the chopped straw are thrown out from outlet of the machine.

It suits to feed the cattle, sheep, horse, deer and other animals
enhance the stability of work, reduce noise too.
enhances flexibility and service life,
reduce grass resistance, increase the grass feed quantity
improve the production efficiency.

straw chaff cutter straw crusher machine
■ Specifications

Technical of chaff cutter HL-9Z5.0

Type HL-9Z3.0 HL-9Z5.0 HL-9Z10.0 HL-9Z30.0
Capacity(kg/h) 2-3t 4-4.5t 5-7t 8-10t
Cutter head speed 800r/ minute 800r/ minute 500r/ minute 500r/ minute
>Power(kw) 5.5 5.5 15 15
Certification CE CE CE CE
Weight(kg) 138 340 880KG 880
Dimension(mm) <1250*1150*1670 mm 2690*1210*2390mm 3510*1800*4210 mm 3510*1800*4210 mm
