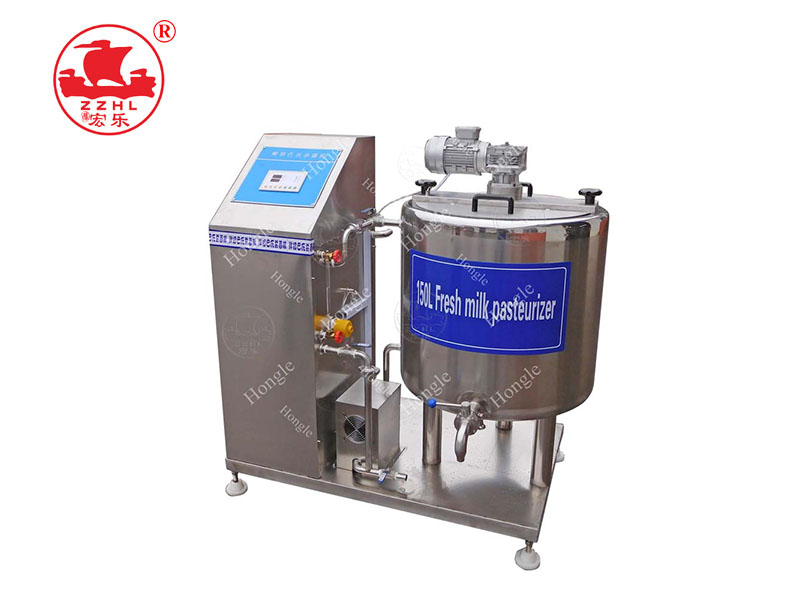

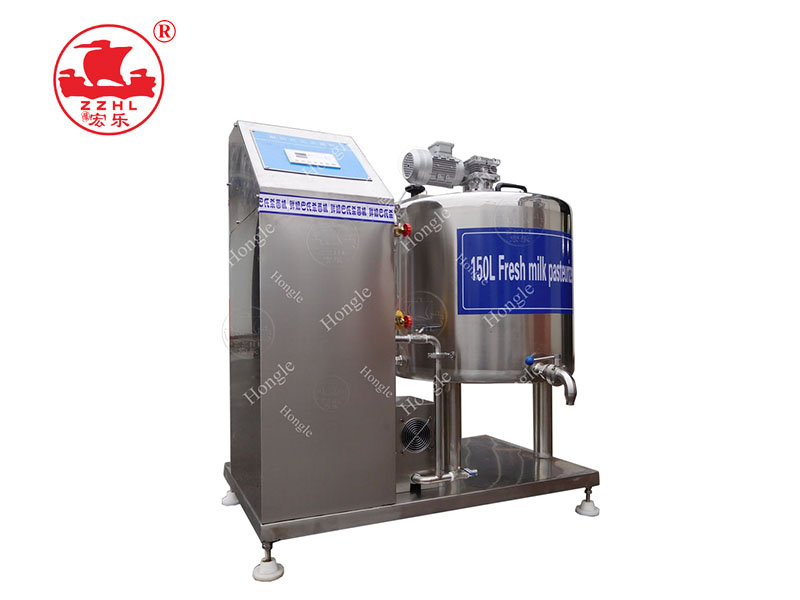

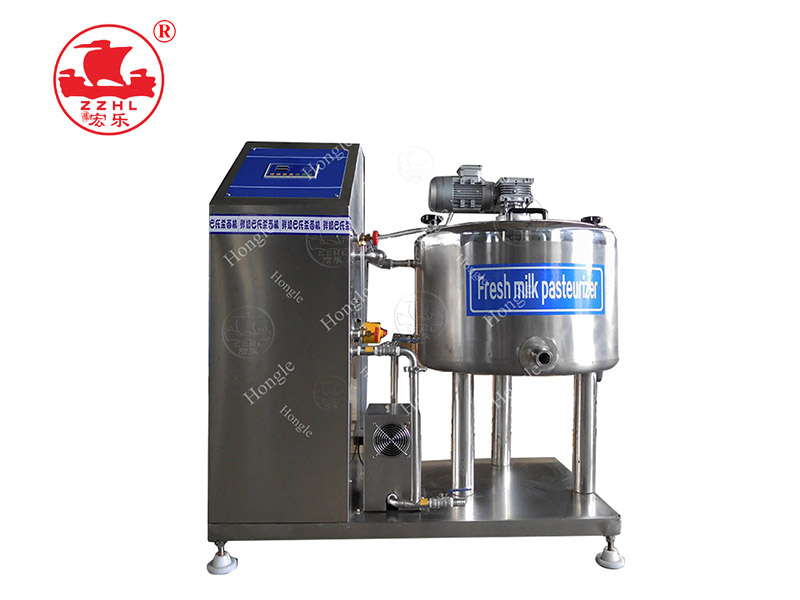

New Design 100 Liter Milk Pasteurizer Machine Dairy Farm Small Milk Pasteurizer With Low Price

  • Capcity: 150L
  • Power: 9kw
  • Voltage: 220v/380v
  • Ports: Qingdao/Ningbo
  • Size: 1400*800*1400mm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Milk Pasteurizer
  • Milk Pasteurizer
  • Milk Pasteurizer
  • Milk Pasteurizer
■ Application and Features

 Electric heating Pasteur sterilization machine with the feature of the high temperature resistance, corrosion resistance, strong production capacity, no need steam heating etc, and is mainly used for milk, medicine, beverage, scientific research and industry departments.
Pasturing machine consists of pot body, pot, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by (USU304) stainless steel.
The pot body connects with pot cover; at the bottom of pot body have feeding hole, with agitator in the machine.
The heating jackets have feeding, temperature measurement, emptying valve, electric heat stick etc.

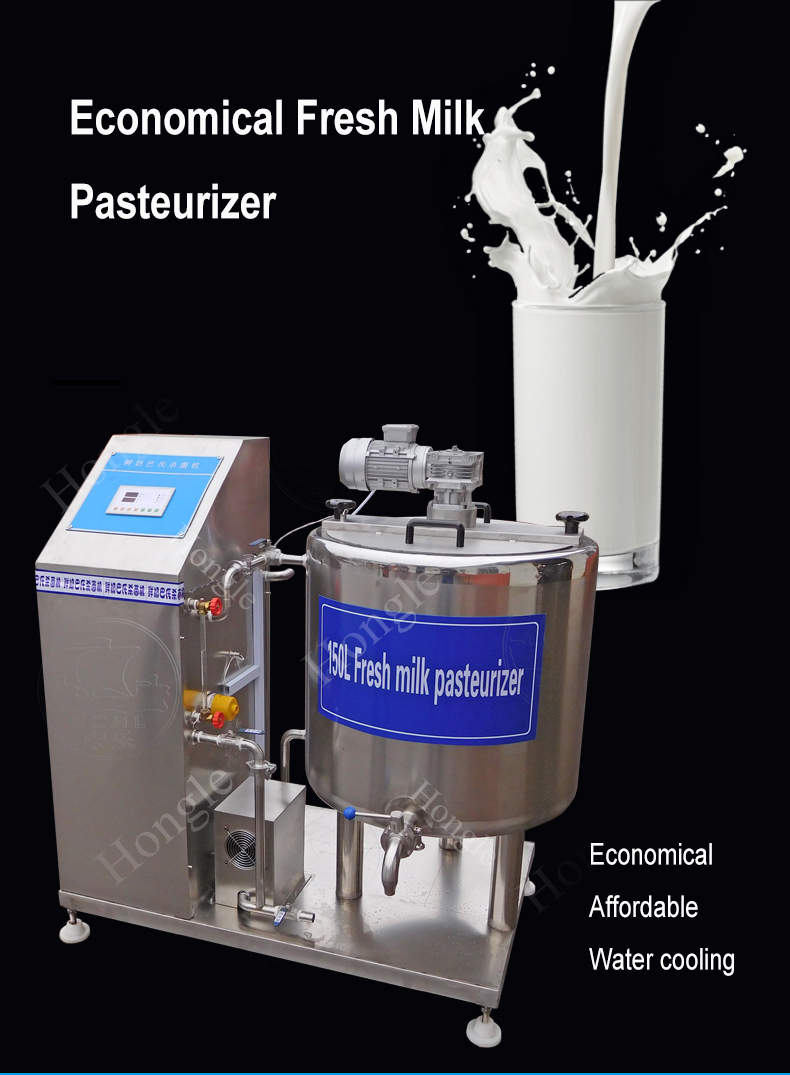

Economical type dairy pasteurize machine



Economical Pasteurizer Machine ,The more widely used pasteurization tank, adopts pasteurization method to sterilize, pasteurize milk. It needs to be refrigerated at 4°C-10°C throughout the whole process, which is more popular. Preserve the nutrients in milk. Milk with a short shelf life is mostly "homogeneous" milk sterilized by pasteurization. This method of sterilizing can make the nutrients in the milk more ideally preserved. It is the most advanced milk sterilizing method in the world today.



■ Specifications
model
HL-E-150L
Barrel inner diameter
630mm
barrel outer diameter
740mm
Inner Height of Milk Tank
600mm
Yield
10-150L/batch
Sterilization temperature
60-90 degrees Celsius (adjustable)
Material
Stainless steel lead screw adjustment nut
power supply
380V/9kw
machine size
1400*800*1400mm
weight
190kg
