Plc Numerical Control Herb Medicine Cutting Machine Licorice Root Herbal Cutter

  • Capcity: 20-300kg/h
  • Power: 3.5kw
  • Voltage: 380v
  • Ports: Ningbo /Qingdao Chinese Main Port
  • Size: 1.72*1.05*1.4m
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  •  Licorice Root Herbal Cutter
■ Application and Features

1. The main purpose :

This product is used for cutting and processing all leaves, barks, roots, vines, grasses, fruits, seeds, or agricultural and sideline products. It can cut slices, segments, bars and other general decoction pieces within the range of 0.5-30mm and polygonal granular decoction pieces within the range of 0.5-30mm.
2.The main features:
adopt digital control program operation, high accuracy rate. Good stability. Continuous operation. Automatically adapt to the feed volume, suitable for cutting pellets and delicate pieces. The loss rate of cut decoction pieces is less than or equal to 3%, the cut of decoction pieces is flat, the slice shape is good, the whole machine is easy to clean, easy to operate and easy to maintain. Does not pollute materials. Meet GMP requirements.
3.Principle:
The control module monitors and controls the inverter and the controller in communication mode according to the program compiled by the microcomputer system. Receive man-machine interface and cutter position sensor signals. The parameters of the control
module can be set through the man-machine interface. The stepping speed and slice thickness of the cutter mechanism are controlled by the control module.
4. video









■ Specifications



Name

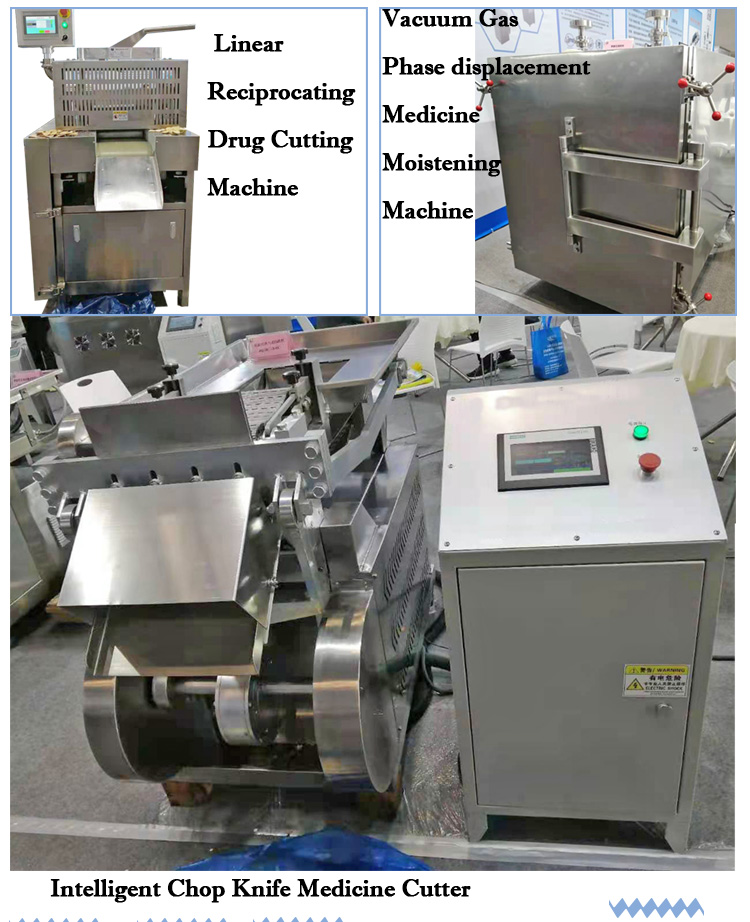

intelligent linear reciprocating cutting machine
Model
HLRZG-300
HLRZG-500
CapacityCapacity(KG/H)
20-300
60-400
Slice length(mm)
0.3-30
0.3-30
Voltage(KW/V)
3.5/380
5/380
Cutter Door width(mm)
264
464
Machine size(M)
1.72*1.05*1.4
1.72*1.01*1.26
Weight(KG)
500
700
