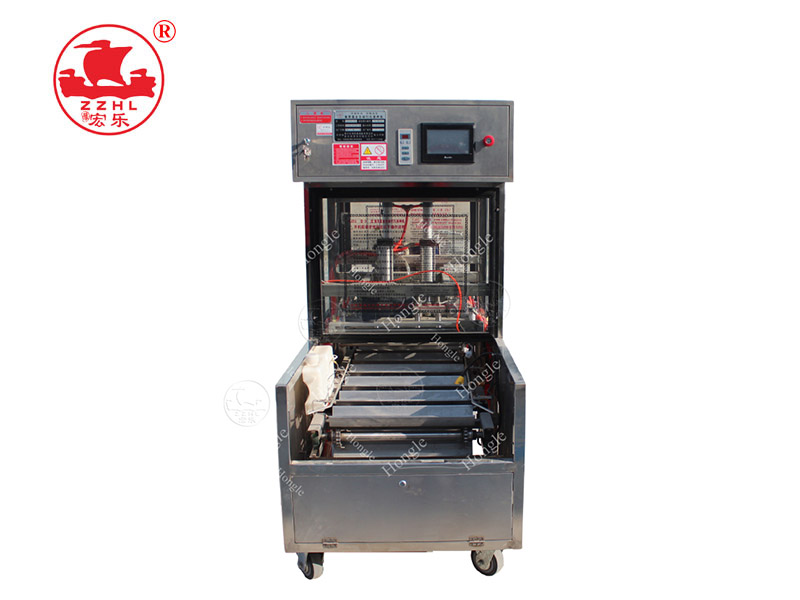

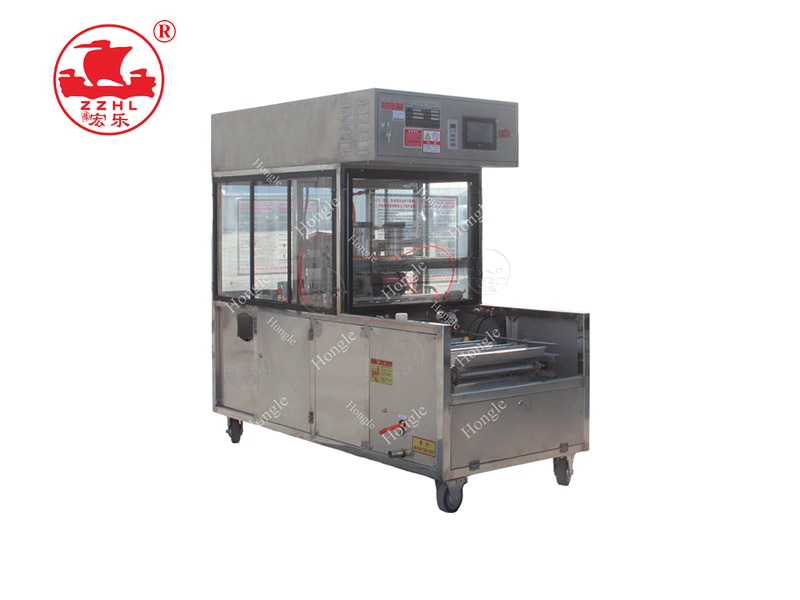

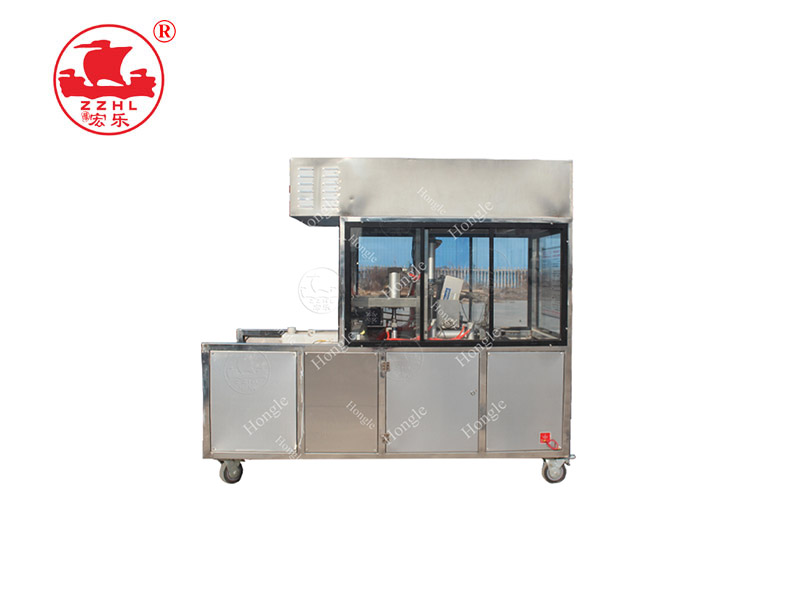

The main performance and structural features:
1. PLC high-efficient automatic computer control program, pneumatic operation, automatic disinfection, drilling, injection, seed,leveling, out of the bag, the whole process of manual simulation to complete the vaccination, the Chinese invention patent bronze award.
2. instead of manual work, 4 holes on one side, the quantity of bacteria and the size of holes can be adjusted, intelligent detection, fault alarm, automatic repair Operation Fault, manual program can be set, high degree of visualization; Class 100 purification device, UV, ozone double disinfection;.
3. By changing the chain plate, 2 or 3 kinds of adjacent rod can be connected to realize multi-purpose machine. High production efficiency, low labor intensity, high inoculation accuracy .
4. the device itself with FFU 100 laminar flow cover, ozone, UV lamp, sterilization thoroughly, reasonable structure, stable performance. Disinfection, drilling, seed injection, seed push, leveling, out of the bag all use Yade guest cylinder, long service life.
5. all stainless steel body, precision processing technology. 6. The fuselage is equipped with a universal and directional tugboat for easy moving and placing.
scope of application
Automatic bagging with flat width of 14cm-22cm and bag length of 40cm-60cm.
the production flow
manual put stick → disinfect → drilling → inject seed → push seed → level → out of bag
