Packaging machine

You are here: Home > Products  > Packaging machine

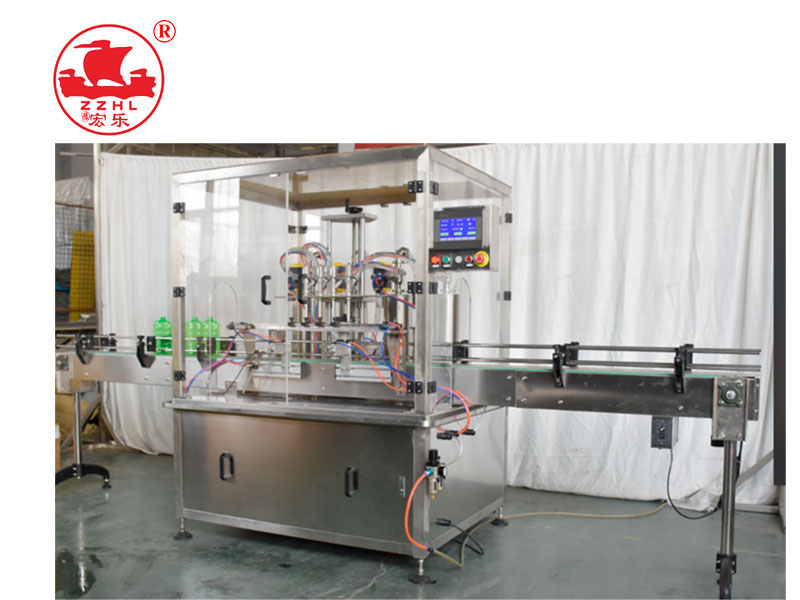

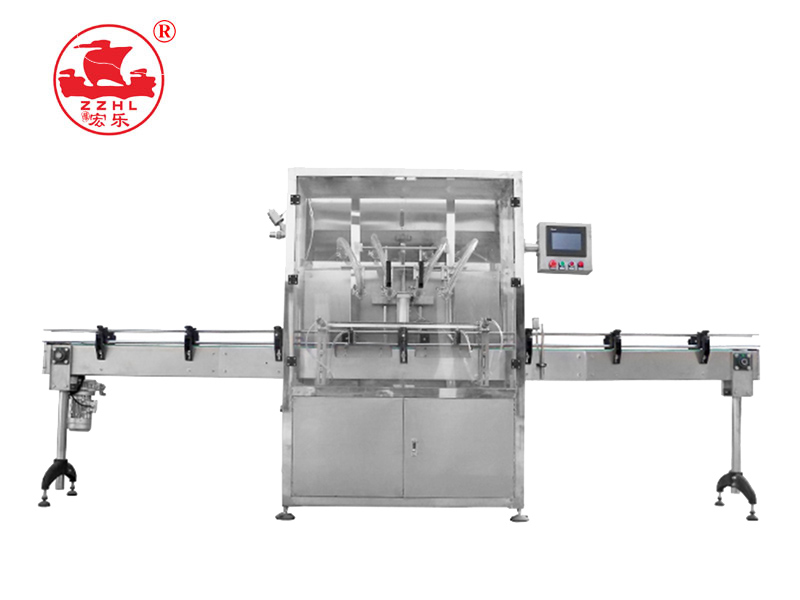

Multihead Weigher Packing Factory Machines Grease Cbd Oil Essential Oil Filling Machine Honey Liquid Filling Packing Machine

  • Capcity: 500-1000bottles/h (filling 500ml)
  • Power: 2000w
  • Voltage: 220v/380v
  • Ports: Ningbo / Qingdao
  • Size: 400*110*210cm
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Essential Oil Filling Machine
  • Essential Oil Filling Machine
  • Essential Oil Filling Machine
■ Application and Features

Performance characteristics:

1.This machine adopts imported servo motor to drive piston measuring barrel to achieve metering filling.

2.Three-way filling valve, compact and reasonable design, simple and beautiful appearance;

3.Change the specifications and adjust the filling volume to operate directly on the touch screen, simple and convenient;

4.Automatic bottle feeding, filling, and bottle discharging, no bottle without filling;

5.The filling volume is accurate and has a counting function;

6.Using PLC programmable control and 6-inch touch screen human-machine interface system;

7.Electrical components adopt international brands to ensure excellent quality and long-term stable performance;

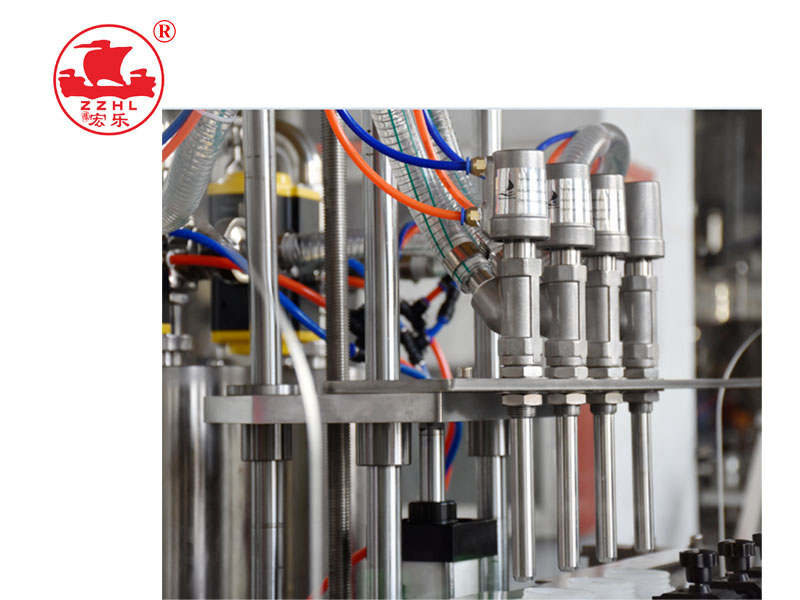

8.Equipped with filling stuffer to prevent dripping and wire drawing to ensure no dripping after filling;

9.Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.

10.Sanitary valve pipeline, quick installation connection, easy disassembly and installation.

Parameters:

Model

HL-SFGZ-L4

HL-SFGZ-L6

HL-SFGZ-L8

HL-SFGZ-L12

HL-SFGZ-L16

Filling head

4heads

6heads

8heads

12heads

16heads

Filling range

50-1000ml或500-3000ml(5Lfilling two times)

Filling accuracy

±1%(>100ml)

Capacity (filling 500ml)

500-1000bottles/h

800-1600bottles/h

1000-2000bottles/h

1500-3000bottles/h

2000-4000bottles/h

Air pressure

0.5-0.7mpa

Air consumption

20L/t

30L/t

40L/t

60L/t

100L/t

Power

2.0KW

2.0KW

2.0KW

2.5KW

2.5KW

Weight

300kg

400kg

500kg

700kg

900kg

Size (cm)

400*110*210

400*110*230

400*115*230

600*100*230

600*100*230

■ Specifications
