Vegetable Fruit Processing Machine

Garlic Production Line

  • Capcity:
  • Power:
  • Voltage:
  • Ports: Qing Dao,Ning Bo
  • Size:
  • Payment: T/T,Western Union L/C

Send an E-mail to us!

(※ Click this button to inquiry)

  • Garlic production line
■ Application and Features

Features of Garlic production line

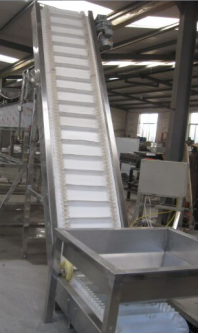

1.Elevator

Model:TQ-5

Machine size:2500*900*1900mm

Power:0.37kw

Voltage:380v

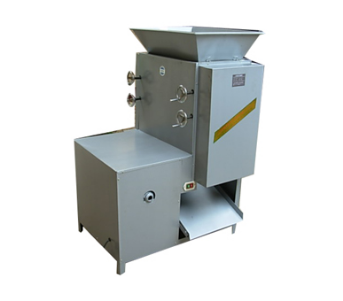

2.garlic separating machine



To separate garlic bulbs into cloves. The work principles of such separating machine is using standard rubber rollers for food product to break the garlic bulb into clove. Also applied the exclusive developed pressure adjustable method to ensure the integrate of the products for different size of garlic bulb. Easy operation makes the clove without damage and high separating rate.

Technical parameters of Garlic separating machine

Model

Power Source

Power

Dimension

Weight

Capacity

HYFB-L

380 ACV

2.2kw

985*835*1420mm

280 kg

800kg/h

3.Select Belt



Model:TD-200

Machine size:4000x900x1100mm

power:0.37kw

voltage:2000kg/hour

4.Elevator

Model:TQ-5

Machine size:2500*900*1900mm

Power:0.37kw

Voltage:380v



















5.Garlic peeling machine



Introduction:

It is a dry and full automatic garlic peeler with high peeling rate.garlic cloves are smooth and no damage after peeling ,it is suitable for any kinds of garlic ,this machine adopts electric automatic combustion control the feeding ,peeling and separating ,there is no need any water in the whole process,which is good to the environment,it is a high tech,high efficiency garlic peeling machine.

Technical parameters of Garlic peeling machine



model

power

voltage

weight

Machine size

capacity

AMS-600

2kw

220v

160kg

1040*965*1750mm

600kg/h

6.Vibration type garlic separating machine



Model:TD-200

Machine size:4000x900x1100mm

power:0.37kw

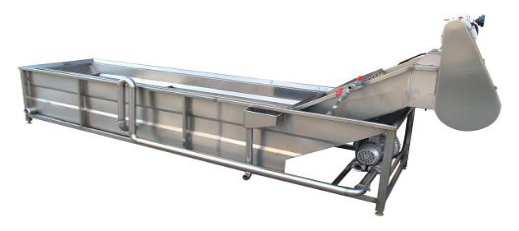

7.Air bubble cleaning machine



Machine size:3000*1020*1350mm

power:1.87kw

Voltage:380v

Introduction: the product is made of stainless steel manufacturing, durable, equipment and materials will not damage, so as to achieve liquid clear height, labor saving, water saving, equipment performance is stable, reliable and so on.Use bubble rolling, spray cleaning technology for material, lines of each single machine can be customized according to user's different processing characteristics, meet the technological requirements, a high degree of automation, is widely used for cleaning of various kinds of vegetables.

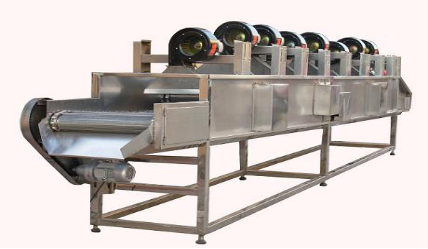

 8.Dried in addition to the waterline



Introduction: this big air volume, low noise fan natural wind blow dry, will not cause damage to the material, air drying machine is designed to flip delivery for many times, and the reverse wind device to prevent dry dead Angle, air drying machine dry effect good equipment adopts frequency conversion transmission, speed adjustable conveying smoothly.To fruit and vegetable food, drugs, seafood, and various after cleaning, cooking, editing, blanching, packaging materials such as dry cooling after sterilization.

Machine size:5000*1000*1600mm

power:8.25kw

Voltage:380v

9.Fruit and vegetable cutting machine



Machine size:860*510*1280mm

power:5.5kw

Voltage:380v







■ Specifications

Specifications of Garlic production line



Machine name

quantity

elevator

1

Garlic separating machine

1

Selecting belt

1

elevator

1

garlic peeling machine.

1

electing belt

1

Air bubble cleaning machine

1

dried in addition to the waterline

1

Fruit and vegetable cutting machine

1
